| Categories | Compression Testing Machine |
|---|---|
| Brand Name: | PTE |

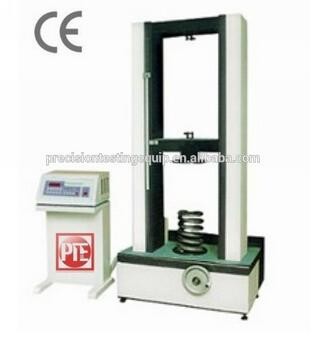

| Model Number: | TLS-S200 Digital Display Spring Tension & Compression Testing Machine |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Payment Terms: | L/C, T/T, Western Union |
| Delivery Time: | wooden case |
| Packaging Details: | within 10 days after the confirmed order |
| Usage: | Universal Testing Machine |
| standards: | ASTM, DIN, BS, JIS, GB, etc. |
| test material: | metal,plastic,rubber,spring, all kinds of rope material |
| fields: | metallurgy, machinery, building engineering,industry,lab,factory |
| Load accuracy: | ≤±1% |

TLS-S series of spring tension & compression testing machine adopts integrated circuit and micro-computer to test the 2 parameters of displacement and load and to digitally display their values, as well as printing out the testing results. Hand loaded, the machine can pre-set the upper & lower limit load of 4 test points and auto judge the qualification of the 4 test points. It can also automatically revise displacement of load cell. Generally, the machine has functions of peak value holding, overload protection, zero clearing at any test point, stiffness calculation, data retrieval,etc. It is suitable for testing of various precision extension and compression springs and intensity measuring of brittle materials.
| Max test load(N) | 200 |
| Min. resolution of test load(N) | 2 |
| Load accuracy | ±1% |
| Min. resolution of vernier (mm) | 0.05 |
| Max. distance between 2 tension hooks (mm) | 270 |
| Max. distance between compression plates (mm) | 250 |
| Diameter of platens(mm) | 110 |
| Manual feeding | manual |
