| Categories | PLC Communication Module |
|---|---|
| Brand Name: | FLEXEM |
| Model Number: | FL2N-24MT-4TCPT |
| Certification: | CE |
| Place of Origin: | Shenzhen |
| MOQ: | 1pc |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 5000 pcs/week |
| Delivery Time: | 1-7 business days after payment confirmed |
| Packaging Details: | Carton |
| CPU: | ARM 32-bit Cortex-M3 CPU |
| Digital Input: | 12 Input *12,supporting source/drain type |
| Digital Output: | 12 NPN transisitor power output*12 |
| Analog Input: | 4 line thermol resistor or thermocouple Thermocouple:(B,C,E,J,,K,N,R,S,Tmodel) Thermol resistor: (PT100,PT1000,Cu50,Cu100)NTC |
| User Program Memory: | 200k bytes(>10k Bytes) |
| Communication Protocol: | RS232*1,RS485*1 Supporting Mitshubish FX2N and Modbus RTU communication |

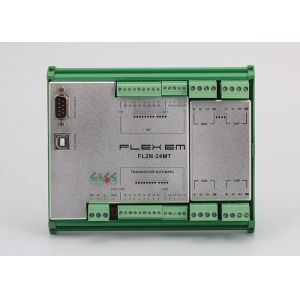

FL2N-24MT-4TCPT 12 NPN transistor power output PLC with 2-way AB input
Description:
* CPU: ARM CortexTM M3 CPU.
* Digital Input: Transistor input, supporting source drain type.
* Digital Output: NPN transistor output.
* High-Speed Input: 2-way AB input/4-way separate high-speed counting.
* High-Speed Output: 4-way high speed surge immunity output(100kHz x2, 50kHz x2)/(single-way output maximum 200kHz).
Specification:
| Digital Input | 12 Input x12,supporting source/drain type |
| Analog Input | N/A |
| Digital Output | 12 NPN transistor power output x12 |
| User Program Memory | 200K Bytes(>10K Bytes) |
| Involatile Data Memory | 2K Bytes |
| Timer | 256 100ms timer x206(0.1~3276.7 seconds),10ms timer x46(0.01~327.67 seconds), 1ms timer x4(0.001~32.767 seconds) |
| Counter | 235 |
| PORT1/PORT2 | ||
| Pin1 | Rx-(B) (PORT2 RS485) |  |
| Pin2 | RxD (PORT1 RS232) | |
| Pin3 | TxD (PORT1 RS232) | |
| Pin4 | NA | |
| Pin5 | GND | |
| Pin6 | Rx+(A) (PORT2 RS485) | |
| Pin7 | NA | |
| Pin8 | NA | |
| Pin9 | NA | |
|
