CMO M220Z1-L06 LCD Panel 22.0 inch Normally White with 473.76×296.1 mm Active Area

Categories Innolux LCD Panel
Brand Name: Innolux
Model Number: M220Z1-L06
Certification: ISO9001
Place of Origin: KOREA
MOQ: 1
Payment Terms: T/T, Western Union, MoneyGram
Delivery Time: 1-3 Working Days
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Response Time: 1.3/3.7 (Typ.)(Tr/Td)
Active Area: 473.76×296.1 mm
Panel Type: a-Si TFT-LCD , LCM
Display Colors: 16.7M (6-bit + Hi-FRC)
Contrast Ratio: 1000:1 (Typ.)
Brightness: 300 cd/m² (Typ.)
Viewing Angle: 85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Surface: Glare (Haze 0%), Hard coating (2H), Reflection 3.0% (Max.)
Supply Ability: 500PCS/DAY
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

CMO M220Z1-L06 LCD Panel 22.0 inch Normally White with 473.76×296.1 mm Active Area

CMO M220Z1-L06 LCD Panel 22.0 inch Normally White with 473.76×296.1 mm Active Area


M220Z1-L06 LCD Panel Specification

Panel Brand :CMO
Panel Model :M220Z1-L06
Panel Type :a-Si TFT-LCD , LCM
Panel Size :22.0 inch
Resolution :1680(RGB)×1050 , WSXGA+
Display Mode :TN, Normally White, Transmissive
Active Area :473.76×296.1 mm
Outline :493.7×320.1 mm
Surface :Glare (Haze 0%), Hard coating (2H), Reflection 3.0% (Max.)
Brightness :300 cd/m² (Typ.)
Contrast Ratio :1000:1 (Typ.)
Display Colors :16.7M (6-bit + Hi-FRC)
Response Time :1.3/3.7 (Typ.)(Tr/Td)
Viewing Angle :85/85/80/80 (Typ.)(CR≥10) (L/R/U/D)
Frequency :60Hz
Lamp Type :4 pcs CCFL Without Driver
Signal Interface :LVDS (2 ch, 8-bit) , 30 pins
Input Voltage :5.0V (Typ.)

Panel Size :22.0 inch
Dot Resolution :1680(RGB)×1050 (WSXGA+)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :90 PPI
Aspect Ratio :16:10 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.094×0.282 mm (H×V)
Pixel Pitch :0.282×0.282 mm (H×V)
Weight :2.55Kgs (Max.)
Surface :Glare (Haze 0%), Hard coating (2H), Reflection 3.0% (Max.)
Active Area :473.76×296.1 mm (H×V)
Bezel Area :477.7×300.1 mm (H×V)
Outline Dimension :493.7×320.1 mm (H×V)
Outline Depth :16.5±0.5 mm
Holes & Brackets :Side mounting holes (8-M3)
Landscape or Portrait :Landscape type
Touch Pane:Without

Below are our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
ED080XC2E Ink8.0"1024×768
PM049OX1E Ink4.9"266×600
PW100XU2E Ink10.0"640×468
PW090XUDE Ink9.0"640×220
PW090XUCE Ink9.0"640×220
PW090XUBE Ink9.0"640×220
PW090XUAE Ink9.0"640×220
PW090XU8E Ink9.0"640×220
PW090XU7E Ink9.0"640×220

We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk


Our services
1.Your inquiry about our products or the price will be replied within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED Display, LED Gas Price Signs, Indoor/outdoor LED Signs.


FAQ

Q1: What's price?

A1: We provide reasonable price and recommend suitable batteries to our customers.

Q2: What's delivery time?

A2: The delivery time is normally 1-3 working days after payment.

Q3: What's the payment?

A3: We accept T/T, Western Union, MoneyGram, Paypal

Q4: Can we visit your factory?

A4: Warmly welcome. Once we have your schedule, we will arrange professional sales team to follow up your case.

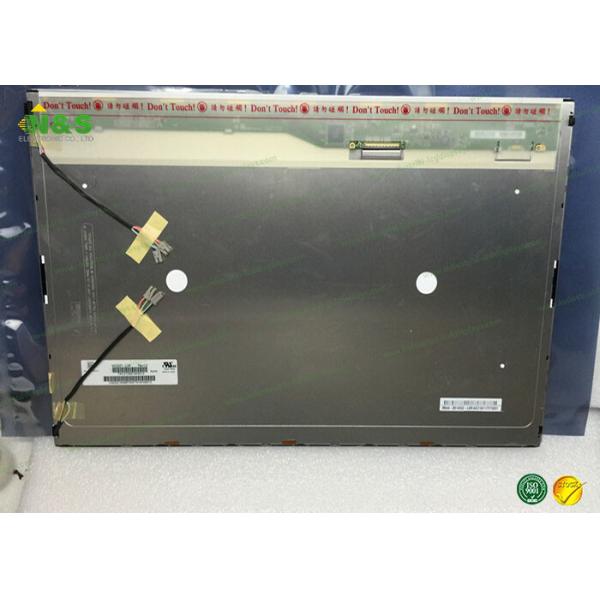

M220Z1-L06 Innolux LCD Panel Picture
