15.4 inch CLAA154WP04A Industrial LCD Displays 331.56×207.225 mm Active Area

Categories Industrial LCD Displays
Brand Name: CPT
Model Number: CLAA154WP04A
Certification: ISO9001
Place of Origin: KOREA
MOQ: 1 Piece
Payment Terms: T/T, Paypal, Western Union, MoneyGram
Supply Ability: 100 PCS / DAY
Delivery Time: 2-3 working days after payment confirmation
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size: 15.4 inch
Resolution: 1440(RGB)×900 , WXGA+
Display Mode: TN, Normally White, Transmissive
Signal Interface: LVDS (2 ch, 6-bit) , 30 pins
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

15.4 inch CLAA154WP04A Industrial LCD Displays 331.56×207.225 mm Active Area

15.4 inch CLAA154WP04A Industrial LCD Displays 331.56×207.225 mm Active Area

Products Information:
Panel Size :15.4 inch
Dot Resolution :1440(RGB)×900 (WXGA+)
Pixel Configuration :RGB Vertical Stripe
Pixel Density :110 PPI
Aspect Ratio :16:10 (H:V)
Form Factor :Flat Rectangle Display
Dot Pitch :0.07675×0.23025 mm (H×V)
Pixel Pitch :0.23025×0.23025 mm (H×V)
Weight :545g (Max.)
Active Area :331.56×207.225 mm (H×V)
Bezel Area :335.0×210.7 mm (H×V)
Outline Dimension :344×242.45 mm (H×V)
Outline Depth :
5.9±0.3 mm
Shape Style :Wedge (PCBA Bent, Depth ≥5.2mm)
Holes & Brackets :Side mounting holes (8-M2) on left, right bezel; Face mounting holes (4 pcs) on up slugs
Landscape or Portrait :Landscape type
Touch Panel :Without

Display Mode :
TN, Normally White, Transmissive
Brightness :250 cd/m² (Typ.)
Contrast Ratio :400 : 1 (Typ.) (Transmissive)
Display Color :262K (6-bit)
Color Gamut :45% NTSC (CIE1931)
Response Time :2.5/5.5 (Typ.)(Tr/Td)
Viewing Angle :60/60/45/55 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction :6 o'clock
White color Chromaticity :
Wx:0.313; Wy:0.329
White Variation :1.25/1.54 (Max.)(5/13 points)
Sunlight Readable :N

Here comes our other LCD panels stock for your easy reference:

Pls contact to us for more stock information: salespm@nselectronic.com.hk

Panel ModelBrandSizeResolution
CLAN080WQ65 XGCPT8.0"800×1280
CLAN070NQ06CPT7.0"1024×600
CLAG050LD01CPT5.0"480×854
CLAN060LB41 2XCCPT6.0"540×960
CLAD015GA01 CXACPT1.5"480×240
CLAN101FP05 XGCPT10.1"1920×1200
CLAG101WH11 LXACPT10.1"1280×800
CLAF055WB42 TXXCPT5.5"720×1280
CLAN089WA02 XNCPT8.9"800×1280

Packaging & Delivery

· Delivery Lead Time :2~3 weeks

· Minimum Order :1 pcs LCD Panel

· Supply Ability :100 PCS / Per Day


Competitive Advantage:

1. We are a leading vendor & distributor for the LCD panels for more than 6 years.

2. We got the ISO9001 quality management system certification.

3. We have our own sourcing line & agency for the hard-to-find & shortage LCD panel models.

4. We are the professional team for the LCD screen sourcing & international trade with 6-year experience.

5. Prompt delivery, we always have the LCD panels in stock. Delivery can be made in 1-3 working days.

6. 1-year warranty is offered.

7. All LCD Panel will be tested before shipment.

8. We are the vendor & distributor in LCD panel area already for 6 years. We own our professional & competitive LCD screen sourcing line.

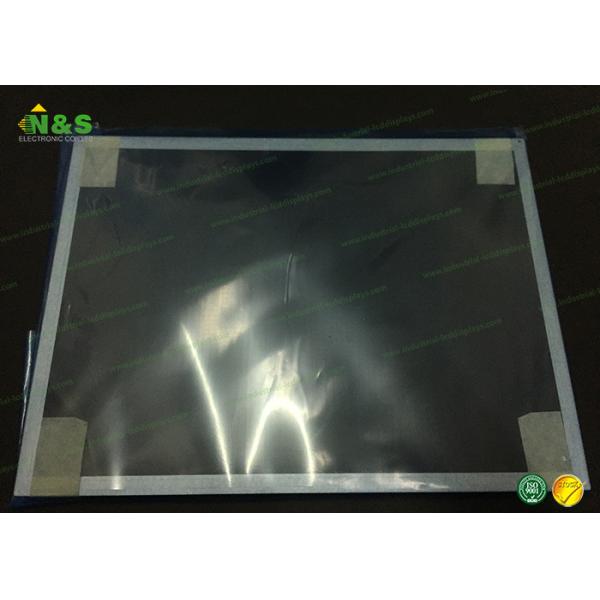

CLAA154WP04A Picture


Quality 15.4 inch CLAA154WP04A    Industrial LCD Displays      	331.56×207.225 mm Active Area wholesale
