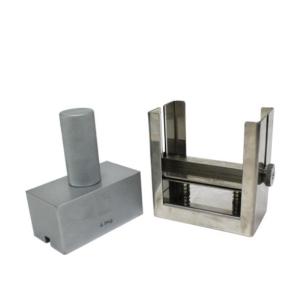

High Precision 8kg ISO AATCC JIS Perspiration Testing Equipment for Footwear
Description:
Competely and averagely soak specimen into acid and alkaline
artificial sweat liquid for 30 minutes. Use the meter to press it
then put into oven at temperature of 37°C for 4 hours. Take out
specimen from oven to appraise grade of dry-endurance against
comparision of grey scale mark after dry.
Specification:
Specification | Specimen | Acrylic plate | Load |
ISO | 40×100 mm | 115×60×1.5 mm(D) | 5 kg |
JIS (A) | 60×60 mm | 115×63×1.5~3mm(D) | 4.6 kg |
JIS (B) | 40×100 mm | 155×63×1.5~3mm(D) | 5.1 kg |
AATCC | 60×60 mm | _ | 4.5 kg |
Model | AATCC | JIS |
Dimension (W×D×H) | 196x77x220 mm | 142x74x244 mm |
Weight | 8 kg |
Accessories such as the different grips, elongation measuring-devices..., etc. are
equipped according to the requirements specified in the contract; our sales
representative will also give the proper suggestions to the customers beforehand.
![]() |
