1710 - 2700 MHz 5dbi 3G 4G LTE WLAN Omni directional Antenna

Categories 1700-2700MHZ 4G LTE Antenna
Brand Name: AMEISON
Model Number: AMXF-1727-5
Certification: ISO 9001: 2008
Place of Origin: China
MOQ: 100
Price: EXW Price
Payment Terms: TT,Paypal,Western Union
Supply Ability: 50,000 Pieces per Month
Delivery Time: 10-20 working days
Packaging Details: PP bag /inner box/master carton or others
Frequency range(MHz): 1710-2700
Bandwidth(MHz): 990
Gain(dBi): 5
VSWR: ≤1.5
Polarization: Vertical
Lightning protection: DC Ground
Input connector type: N female
Mounting way: Pole-holding
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

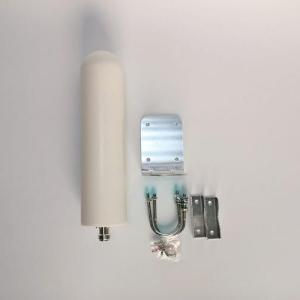

1710 - 2700 MHz 5dbi 3G 4G LTE WLAN Omni directional Antenna

1710 - 2700 MHz 5dbi 3G 4G LTE WLAN Omni directional Antenna


Feature:

Exquisite appearance

Optimized dimension

Full day working

Wide frequency band, low standing wave, strong anti-interference ability


Application:

PCS/ 3G/ WLAN/ 4G/ LTE system

Vehicle mobile communication device


AMXF-1727-3

Electrical Specifications

Frequency range(MHz)1710~2700
Bandwidth(MHz)990
Gain(dBi)5
Half-power beam width(°)H:360 V:55
VSWR≤1.5
Input Impedance(Ω)50
PolarizationVertical, Linear
Maximum input power(W)50
Lightning protectionDC Ground
Input connector typeN female
Mechanical Specifications
Dimensions(mm)Φ60*230
Antenna weight(Kg)0.05
Operating temperature(°c)-40~60
Radome materialABS
Radome colorWhite or customized
Waterproof StandardIP65/ IP67
Mounting hardware(mm)¢35 - ¢50
Mounting wayPole Mount
