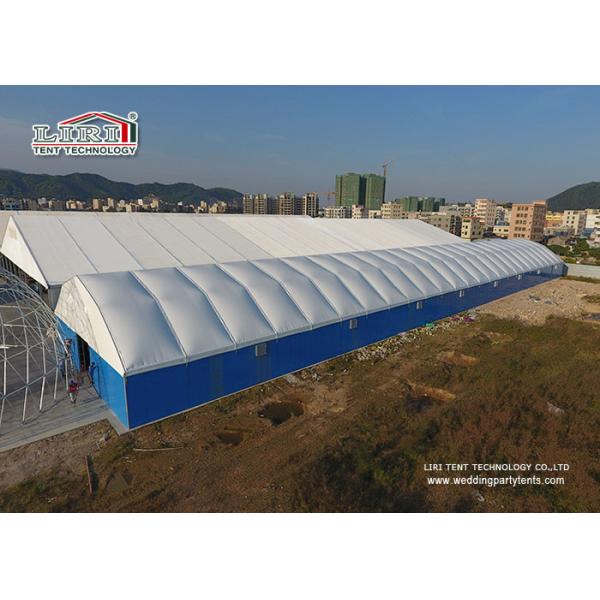

20m Width Steel Polygon Structure Tent With PVC Roof Cover And Sandwich Walls And Rolling Door

20m Width Steel Polygon Structure Tent With PVC Roof Cover And Sandwich Walls And Rolling Door

1. Application

- Durable, wind resistant, flame retardant with according certificates
- Large size automatic/ mamual lifiting door system
- Heavy duty sandwich panel sidewalls
- Modular system able to flexibly extand and move
- Clear span design 100% interior space usable
- 120km/h wind load
- Full line accessories

2. Specification
side height is 4m.

3. Material
1) Frame struss: Hard pressed extruded aluminium 6061 /T6(15HW) which can last 15 to 25 years.
2) Fabric cover: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear resistant, self-cleaning ability, etc.
3) Connecter: Strong hot-DIP galvanized steel

4. Features & Specification
1) Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
2) Wind load: Max. 100km/h (can be reinforced)
3) Snow load: 75kg/sqm (snow can't stay if use big degree roof design)
4) Easy to be assembled and dismantled, removeable
5) No pole inside, 100% room is available
6) Sizes can be customized(like side/leg height)

5. Color available

white, red, yellow, blue, green, black, gray, transparent, etc.

6. Optional accessories
1) covers: Colourful cover, transparent cover, inflatable roof cover
2) windows: Dome or square clear PVC windows, mesh window, glass window for glass wall
3) wooden flooring system: VIP, cassette, simple
4) doors: Double-swings glass door, single-swing glass door, glass fire door, hard PVC door
5) rolling door(automatic or manual)
6) sidewalls: Glass wall, PVC hard wall, sandwich panel wall, fiber glass wall
7) fixing methods: Ground anchors, weight plate, expandable screws
8) rain gutters (inner roof beam rain gutter or rain gutter between two tents)
9) lighting, AC, carpet, etc.

7. Product Certificate:

1). Fabric: Test reports for the fire retardant, standards:NFPA701, CFM & din 4102B1/M2
2). Structure safety: Certificates by the registered engineers in the U.S.A & Australia.

If the customers need above certificates copy, pls feel free to contact with Liri Tent Technology. We will not show them on the website to avoid copies.

8. Reputation:

1). Guaranteeing quality but reducing cost by 17 years' experience.
2). Focusing on global PVC tents market and requirements.
3). Innovating hardware design for more trendy and convenient.
4). In order to improve efficiency, suppliers of raw material are neighboring.
5). 100% inspection before exporting and 100% after-sales service following.
6). On going creation and innovation can go beyond.
