| Product Name: | Fiber Patch Cables |
| Mode: | Single Mode |
| Cores: | simplex |
| Polishing: | LC / APC/ SC |
| Length: | Customised |
| Application: | FTTB |
| Company Info. |
| Gezhi Photonics Co.,Ltd |
| View Contact Details |
| Product List |

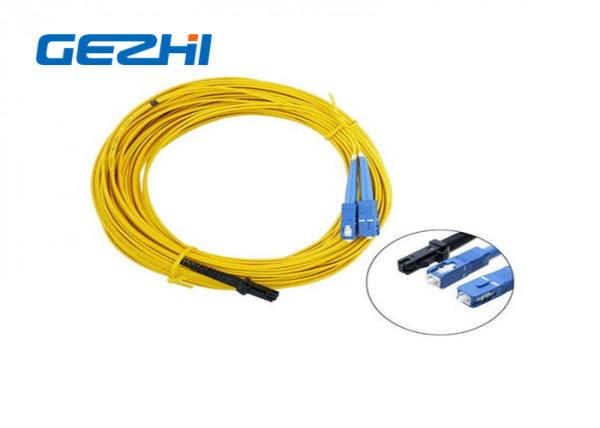

LC / APC Patch Cord MT - RJ to SC Singlmode Duplex Zipcord Without
Clip Yellow
Fiber optic patch cord is one of most commonly used components in
fiber optic network. fiber optic
patch cords sometimes is also called fiber optic jumper or fiber optic patch
cables. generally there
are two types of fiber optic patch cords: single mode fiber optic patch cords and multimode
fiber optic
patch cords. here the word mode means the transmitting mode of the fiber optic light in the fiber optic
cable core. usually single mode fiber optic patch cord are with 9/125 fiber glass and is yellow jacket
color, multi mode fiber optic patch cord are with 50/125 or
62.5/125 fiber glass and is orange color.
Features
Application
Specification
| Item | Standard,Master |
| Connector type | LC,SC,ST,FC.MPO, SC/APC, |
| Duplex MTRJ/Female, MTRJ/Male | |
| Fiber Type | |
| 9/125 SMF-28 or equivalent (Singlemade) OS1 | |
| 50/125, 62.5/125 (Multimode) OM2&OM1 | |
| 50/125, 10G (Multimode) OM3 | |
| Cable Type | Simplex, Duplex (Zipcord) |
| Φ3.0mm, Φ2.0mm, Φ1.8mm | |
| Φ1.6mm PVC or LSZH | |
| Φ0.9mm, Φ0.6mm buffered fiber PVC or LSZH | |
| Polishing Manner | UPC,SPC,APC (8°& 6°) |
| Insertion Loss | ≤ 0.1dB (For Singlemode Master) |
| ≤ 0.25dB (For Singlemode Standard) | |
| ≤ 0.25dB (For Multimode) | |
| Tested by JDS RM 3750 | |
| Return Loss (For Singlemode) | UPC ≥ 50dB |
| SPC ≥ 55dB | |
| APC ≥ 60dB (typ.65dB) | |
| Tested by JDS RM3750 | |
| Repeatability | ±0.1dB |
| Operating temperature | -400C to 850C |
|
 | Ferrule Endface Radius |
| 7mm ≤ R ≤ 12mm (For APC) | |
| 10mm ≤ R ≤ 25mm (For Standard) | |
| Apex Offset ≤ 30 μm (For Master) | |
| Apex Offset ≤ 50 μm (For Standard) | |
| Undercut -50nm ≤ U ≤ 50nm | |
| Tested by DORC ZX-1 |
Ordering information
| Boot (cable size) | Boot Color | Fiber Type | Cable number | Ferrule | Length |
| 0.9mm | Black | 9/125um SM | Simplex | PC | Customized |

|   |
