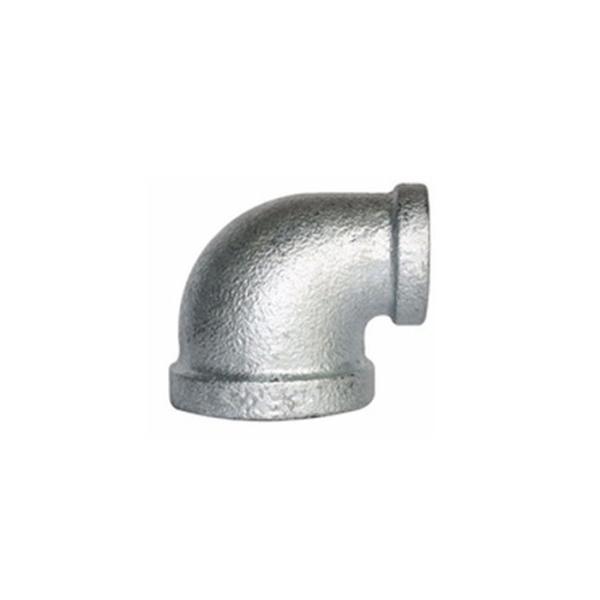

| Categories | Malleable Iron Elbow |
|---|---|
| Brand Name: | leyon |
| Model Number: | OEM Malleable Pipe Fitting Flg Elbows |
| Certification: | FM/UL |
| Place of Origin: | China |
| MOQ: | 100piece |
| Price: | Negotiable |
| Payment Terms: | Western Union, L/C, T/T, MoneyGram |
| Supply Ability: | 10000piece/week |
| Delivery Time: | 25-35days |
| Packaging Details: | 200piece/carton |
| Color: | Galvanized & black |
| Technics: | Casting |
| Standard: | ANSI,BS,DIN |
| Dimension: | A: 40mm B: 42mm |
| Working pressure: | 1.6Mpa |
| Testing pressure: | 2.5Mpa |
| Company Info. |
| Leyon steel Co., Ltd |
| View Contact Details |
| Product List |
Why the malleable cast iron from kanaif is expensive than other factory ?
The labor cost is higher
Becaue kanaif need more people to check the products in many processes. Like 1. after broken box , 2.raw blank inspection , 3. cooked rough inspection ,4. after hot galvanized inspection , 5. before the machine inspection , 6. Products inspection 7. Inspection before packing
List :
| Material | Malleable iron |
| Standard | Thread: ISO 7/1 |
| Dimension | ISO 49, DIN 2950,EN10242 |
| Chemical property | (C %2.4-2.9), (Si %1.4-1.9), (Mn %0.4-0.65), (P% <0.1), (S% <0.2%) |
| Physical property | Tensile strength>=350Mpa,Elongation>=10% Hardness<=150HB |
| Testing pressure | 2.5Mpa |
| Working pressure | 1.6Mpa |
| Type | Beaded with ribs or banded with ribs |
| Beaded without ribs or banded without ribs | |
| Round/square | |
| Surface | Galvanized/ no galvanized |
| Color | White/black |
| Model | Elbow, Tees, Crosses, Bends, Unions, Bushings, Lateral Braches, Sockets, Nipples, Hexagon/Round, Caps, Plugs, Locknuts, Flanges ,Side Outlet Tees, Side Outlet Elbows and etc |
| Connection | Male, Female |
| Shape | Equal, Reducing |
| Certificate | BSI,ANAB,ISO9001,FM,UL |
| Application | Suitable for pipe connect of steam, air, gas, oil and so on |
| Buyer’s drawings or designs are available | |
| Package | Cartons without pallet |
| Cartons with pallet | |
| Double woven bags | |
| Or as buyer’s requirements | |
Delivery details | According to the quantities and specifications of each order |
| Normal delivery time is from 30 to 45 days after receiving the
deposit |
Category :
Accurate threads strictkly acc. to the precise standards like ASME,
EU, BS, DIN, etc. There is accurate structure of elbows for the
threads, in this way allows to the easily engage between thread
length & straightness with threaded pipe.
The pipe fittings’ size ranging from 1/8” to 8”.
Making sure of long-time working, we have strick requirements of
toughness during process.
We imported full automatic produce-lines from DISA Denmark ,DJ and
SINTOKOGIO Japan on making and quality ensuring .
The cast iron samples are used to test its material’s quality by
using spectrometer from Oxford Instruments.
we use spectrometer from Oxford Instruments to check the material's quality.
Look up table of Malleable Pipe Fitting Flg Elbows
| Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
| mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 | |
| Dim. (mm) | A | 23 | 26 | 26 | 28 | 30 |
| B | 23 | 26 | 26 | 28 | 31 | |
| Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
| mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 | |
| Dim. (mm) | A | 32 | 35 | 34 | 36 | 40 |
| B | 34 | 36 | 38 | 41 | 42 |
|
