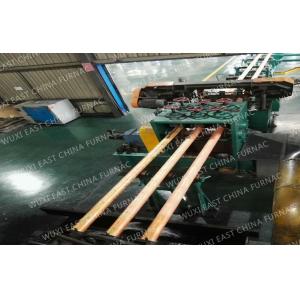

Horizontal Style Copper Continuous Casting Machine , Continuous Casting Plant

Name

Horizontal Style Copper Continuous Casting Machine , Continuous Casting Plant

1. Brand: T2 copper or TP2 phosphorized copper or TU1.

2. Specification: Φ90×25×(23000-25000) mm three production line

3. Quality:chemical composition, microstructure of geometry size, both inside and outside surface, low power and so on all meet the technology requirements of heavy air conditioning tube was produced by planetary mill.

Equipment main technical parameters and features

1. Charge car(with Cantilever crane)

1.1 Main technical parameters

⑴. The cantilever is fixed on the furnacce, electric lifting, < 360°manual rotation.

⑵. Lifting weight: 200 kg; Effective lifting height: 2.5 m .

⑶. The speed is stable and the brake is reliable in rated load-bearing working condition.

⑷. With sling.

(5). Baking device: Use slag to get waste heat to heat up the raw material of the electrolytic plate.

1.2 Characteristics

⑴. The equipment is reasonable and reliable, and can resist the damage of frequent operation and high temperature environment.

⑵. It can be used for different raw materials and can relieve the load of the main crane.

⑶. In order to balance the loading and consumption of the material, we have to overcome the operation of the person and the other, and urge the operation to be carried out in a normal and orderly manner. We have developed a device to control and management the time of charging material.

Wuxi East China Furnace Co.,Ltd

Whatsapp: 86 139 2112 5611

joey@wxhddl.cn

    Our company is located at the northeast of Wuxi, Jiangsu Province, with only 2.5 hours of driving distance to Shanghai Pudong International Airport, and the traffic is very convenient.

Wuxi Huadong Industrial Furnace Co., Ltd is a comprehensive enterprise integrating scientific research & development, engineering designing, system integration, equipment installation and sales & services. Our company is dedicated to professional manufacture the production lines for casting of various non-ferrous metals and heat treatment since 1989.

    The production lines for casting non-ferrous metals supplied by our company is complete in categories, specifications and types, mainly capable of casting metals including copper and copper alloys, also related to non-ferrous metals such as magnesium, aluminum and zinc etc. The casting modes include horizontal continuous casting, vertical casting and upward casting; By using our production lines, customers can get billet products with sections of near-the-net-shape dimensions and shapes, including 8 major categories i.e. plates, strips, rods, foils, tubes, bars and shapes. Heat treatment equipments include multiple types of electric resistance furnaces or combination, such as well type, box type, bogie-hearth type, bell type, protective-atmosphere type, vacuum bright type, strong-convection circulation type etc. For casting production lines and heat-treatment equipments, our company can also provide various types of spare parts (furnace shells, melting grooves, water jackets, iron cores, crystallizers, special refractory, temperature measurement devices, transformers, reactors, electric resistance heating elements, and mechanical parts etc.); Our company can also provide cold-processing equipments such as drawing mills and cold-rolling mills for tubes, rods and shapes, as well as scrap metal balers etc.

    Our company can develop, design, and manufacture equipments for specific production lines according to customers' requirements, provide complete services of solutions; Committed to quality, quality priority covers the whole process of designing, purchasing ,manufacturing, production, installation and after-sales services etc. We are doing our best to realized most advanced in technology, most reasonable in configuration, most superior in quality, and most inexpensive in cost. We strictly follow the requirements of ISO9000 quality system, achieving first-class product quality.

Choosing Wuxi Huadong Electric Industrial Furnace Co. ,Ltd as the partner means choosing trust and guarantee, and the correction choice is the safeguard for the smooth operation of your undertakings and reliable return of your investment.
    Wuxi East China Furnace Co. ,Ltd would like to cordially welcome friends from home and abroad for visiting and guidance.
