Newly Power Mode Magnetic Particle Flaw Detector Blue Backlight Displayed Clearly MT-1C

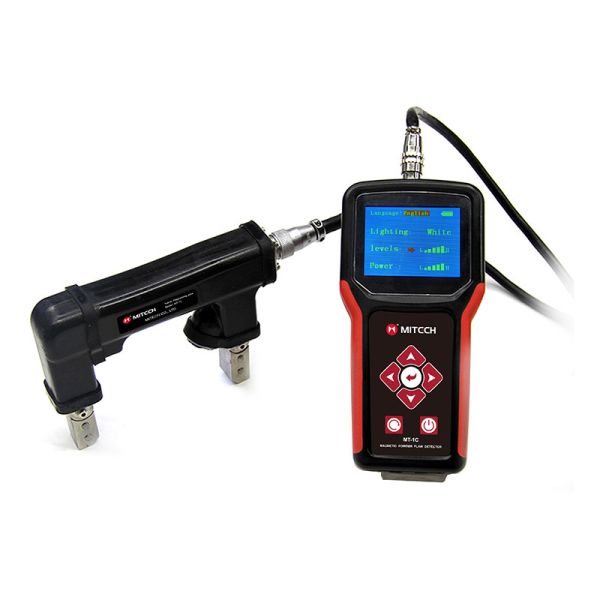

Mitech Digital Magnetic Particle Flaw Detector MT-1C with newly power mode

Technical Parameters

Main Body Structure

①Shell ②Key board ③Screen

④Plug interface and connecting line ⑤Nameplate ⑥Battery cover

Operating Method

Connect the line with detector, start the detector, press detection, choose proper polar distance according to the workpiece.

When making dry powder detection, put the powder on the workpiece, move the yoke with 40mm/s, make sure they are well connected, observe whether the powder is pile up.

When detecting, there must be overlap, the overlap area should less than 25mm, judge the marks correctly.

If the pile up is appeared, blow the redundant powder, make the mark clear.

If the mark can’t be judged, you should polish the surface and test again; if the mark is flaw, press confirm to capture the photo.

Instument maintenance

Use soft cloth to clean the detector.

Avoid strong vibration, place in dry area.

When not using for a long time, you should charge it every three months to avoid damping the components.

Do not press the key too hard or use metal to knock it.

After turning off the detector for 5s, boot again, do not boot immediately.
