| Categories | Thermoelectric Liquid Cooler |
|---|---|
| Brand Name: | Adcol |
| Model Number: | ATL300-12VDC |
| Certification: | ISO9001, CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 500Pcs/Month |
| Delivery Time: | 3-4 Weeks |
| Packaging Details: | Solid Carton Packaging |
| Product Name: | Thermoelectric Liquid Cooler |
| Air Flow: | 45 CFM |
| Dimensions: | 120 x 120 x 25mm |
| Fan Speed: | 2000 RPM |
| Material: | Copper and Aluminum |
| Power Connector: | 4-pin PWM |
| Weight: | 4.95 kg |
| Company Info. |
| Adcol Electronics (Guangzhou) Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

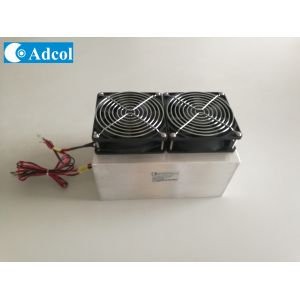

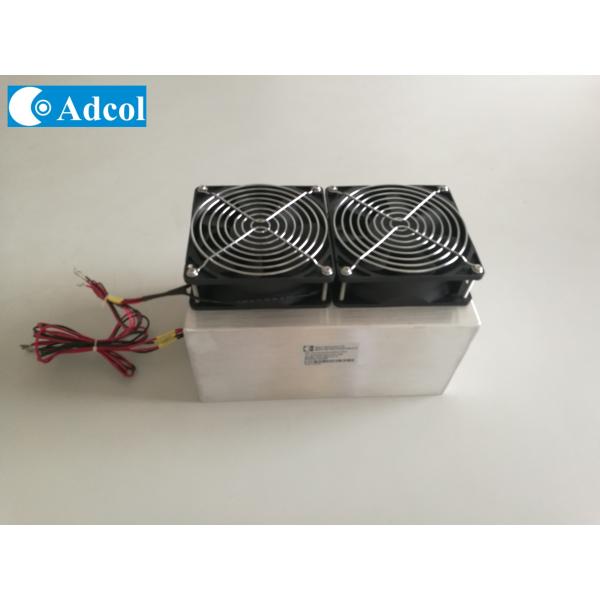

Thermoelectric Device With Heatsink For Commercial
BENEFITS OF THERMOELECTRIC PRODUCTS
Heat or cool depending on DC polarity ideal for temperature
stabilization, as in telecommunication laser diodes.
¥ Capable of very precise temperature control.
¥ Cause no vibration (for use in CCD cameras).
¥ Uses no chlorouorocarbons, for applications where gases are not permitted.
¥ Small prole allows for spot cooling.
¥ Maintain efciency even with scaling, unlike compressor-based
coolers.
¥ Solid state construction (no moving parts) leading to high
reliability.
¥ Produces no acoustical or electrical noise, unlike compressors.
¥ Performs in any physical or gravitational orientation, including upside down or sideways, unlike compressors.
¥ Can be used in zero-gravity, unlike compressors.
¥ Withstands high g-forces of space and military applications.
| Model | ATL300-12VDC |
| Cooling Method | Liquid |
| Radiating method | Air Force |
| Ambient temperature/humidity | -10 to 50°C, 35 to 80% RH (No condensation) |
| Cooling Capacity/Qmax | 300W |
| Input Power | 348W |
| Flow Rate | 5-10PLM |
| Pressure Arange | ≤100PSI |
| Port | Optional |
| Run Current | 28.0A |
| Peak Current | 31.6A |
| Voltage | 12VDC |
| Vmax | 15VDC |
| Operation Temp | -10~50℃ |
| Weight | 4.95 Kg |
| Life Time | 50000 Hour |
| Tolerance | 10% |


|
