| Categories | PLC Splitter |
|---|---|
| Brand Name: | FURONG |
| Model Number: | SPLITTER1-16SCA01 |
| Certification: | ROHS, ISO |
| Place of Origin: | SHENZHEN |
| MOQ: | 1 |
| Price: | negotiable |
| Supply Ability: | 2000/day |
| Delivery Time: | 1-8days |
| Packaging Details: | plastic tray or box |
| Connector: | SC, FC, ST, LC, SCAPC, LCAPC, FCAPC |
| CABLE DIAMETER: | 0.9MM |
| PACKAGE: | STEEL TUBE |
| CABLE LENGTH: | CUSTOMIZED |
| SPLITTING RATIO: | EQUAL |
| WAVELENGTH: | 1260-1650 |

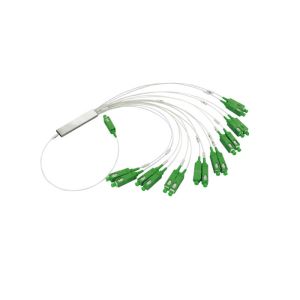

Planar light-wave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical wave-guide technology. It features wide operating wavelength range, good channel-to-channel uniformity, high reliability and small size, and is widely used in FTTX PON to realize optical signal power management.
We provide 1xN and 2xN series of splitters. Three packaging types are available fan-out PLC splitter, module PLC splitter, or rack mount PLC splitter.
Features:
--Adopt high strength stainless steel, pass salt spray test
--Ferrule core is less than 0.5um
--Adopt 100% new raw material, ROHS compliance
--Low Insertion loss
--Low PDL Compact Design
--Good channel-to-channel uniformity
--Wide Operating Wavelength: from 1260nm to 1650nm
--Wide Operating Temperature: from -40℃ to 85℃
Specifications (1XN):
| Port Configration | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 | ||
| Operating Wavelength (nm) | 1260 ~ 1650 | |||||||
| Insertion Loss (dB) | Typical | 3.5 | 6.8 | 10.2 | 13.1 | 16.2 | 20.2 | |
| Max | 4.0 | 7.4 | 10.5 | 13.5 | 16.9 | 21.0 | ||
| Channel Uniformity (dB) | 0.5 | 0.7 | 1.0 | 1.4 | 1.8 | 2.0 | ||
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | ||
| WDL (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 | ||
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | ||
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 60X12X4 | 80(L)X20(W)X6(H) | |||||
| RL (dB) | > 55dB | |||||||
| Directivity (dB) | > 55dB | |||||||
| Fiber Type | G652D | |||||||
| Operating Temperature Range | -40ºC ~ 85ºC | |||||||
Specifications (2XN):
| Port Configration | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 | ||
| Operating Wavelength (nm) | 1260 ~ 1650 | |||||||
| Insertion Loss (dB) | Typical | 3.8 | 7.2 | 10.6 | 14.0 | 16.8 | 20.8 | |
| Max | 4.2 | 7.8 | 11.2 | 14.6 | 17.9 | 21.5 | ||
| Channel Uniformity (dB) | 1.0 | 1.4 | 1.5 | 2.0 | 2.5 | 2.5 | ||
| PDL (dB) | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.5 | ||
| WDL (dB) | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 1.0 | ||
| TDL (-40ºC ~ 85ºC )(dB) | 0.5 | 0.5 | 0.5 | 0.8 | 0.8 | 1.0 | ||
| Dimensions for Fan-out (mm) | 60(L)X7(W)X4(H) | 80(L)X12(W)X4(H) | 80X20X6 | |||||
| RL (dB) | > 50dB | |||||||
| Directivity (dB) | > 55dB | |||||||
| Fiber Type | G652D | |||||||
| Operating Temperature Range | -40ºC ~ 85ºC | |||||||
|
