| Categories | Unicomp X Ray |
|---|---|
| Brand Name: | UNICOMP |
| Model Number: | CX6000 |
| Certification: | CE, FDA |
| Place of Origin: | China |
| MOQ: | 1Set |
| Price: | can negotiate |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 300 sets per month |
| Delivery Time: | 30 days |
| Packaging Details: | Wooden Case, Waterproof, Anti-collision |
| Name: | Unicomp X-ray Counter |
| Application: | Electronics, LED , Flip Chip , Semiconductor |
| Industry: | Electronics Industry |
| Size: | 920(L)x1200(W)x1800(H)mm |
| X-ray Leakage: | < 1uSv/h |
| Weight: | 1000kg |
| Company Info. |
| Unicomp Technology |
| Verified Supplier |
| View Contact Details |
| Product List |

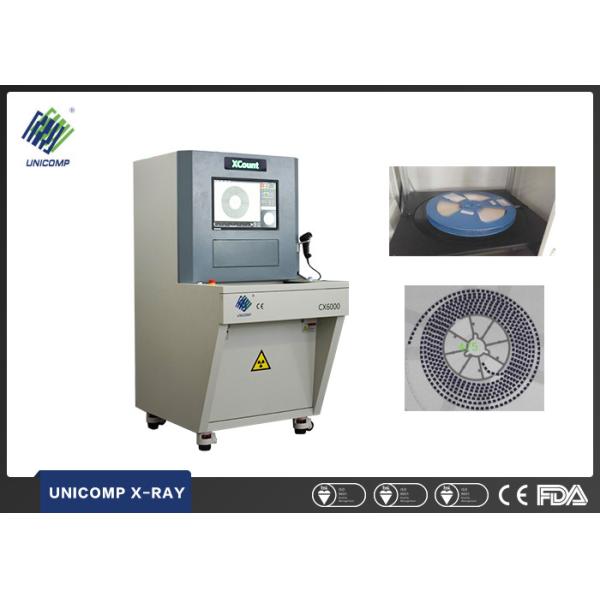

SMD Chip Electronic Component Unicomp X ray Counter Inspection System
This equipment is mainly used for the rapid counting of the production of reel materials, the material type includes all the resistance-type materials and IC materials; through the use of X-RAY imaging of the production materials and access to image information, R & D of the image algorithm calculation, access to the actual number of materials, while the number of materials in accordance with the classification of statistics.
Features:
1. One-button operation, no complicated operation;
2. Convenient way to improve the detection efficiency;
3. Flexible mode of operation, according to the needs of the scene,
by the transplant car to move the device to the test site;
4. Remote service support system;
5. High-resolution detection system to meet the 01005 device.
| Parameters of X-count Machine CX6000 | ||
| System Parameters | Dimension | 920(L)×1200(W)×1800(H)mm |
| Weight | 1000 kg | |
| Power | 220AC/50Hz | |
| Power Consumption | 0.8 kW | |
| X-ray Tube | Tube Type | Closed |
| Max. Voltage | 80 kV | |
| Max. Current | 0.7 mA | |
| Focal Spot Size | 30 μm | |
| Detector | Detector Type | FPD |
| Imaging Size | 430mm×430mm | |
| Resolution | 3.4 Lp/mm | |
| Imaging Processing Time | Loading Time(in sync with unloading) | 5 s |
| Capture and calculation time | 10 s | |
| Compatible Tray Size | Max. Diameter | φ380 mm |
| Min. Diameter | φ180 mm | |
| Max. Thickness | 50 mm | |
| Min. Thickness | 10 mm | |
| Min. Compatible Device Type | 01005 | |
| Detection Speed | < 25 s/plate | |
| Accuracy | > 99.8% | |
| Safety | ﹤1μSv/h | |
| Component counting data can be automatically uploaded to ERP & shop floor system | ||
|   |
