| Categories | Medical LCD Displays |
|---|---|
| Brand Name: | OPTREX |
| Model Number: | T-55105D121J-FW-A-AAN |
| Certification: | ISO9001 |
| Place of Origin: | Korea |
| MOQ: | 1 |
| Delivery Time: | 1-3 Working Days |
| Packaging Details: | Antistatic bag, Bubble Bag, Foam Box and Carton Box. |
| Panel Model: | T-55105D121J-FW-A-AAN |
| Panel Brand: | OPTREX |
| Descrition: | 1024×768 |
| Panel Type: | a-Si TFT-LCD |
| Active Area: | 245.76×184.32 mm |
| Outline: | 280×219×18.3 mm |
| Company Info. |
| N&S ELECTRONIC CO., LIMITED |
| View Contact Details |
| Product List |
T-55105D121J-FW-A-AAN OPTREX a-Si TFT-LCD ,12.1 inch, 1024×768 for
Industrial Application
| Panel Model | T-55105D121J-FW-A-AAN |
|---|---|
| Panel Brand | OPTREX |
| Descrition | a-Si TFT-LCD ,12.1 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Model Alias | AA121XJ01 |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -20 ~ 80 °C |
| Remarks | NCM |
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional
team communication team.
•Value quality and long-term cooperation to reach win-win
relationship.
| Dot Resolution | 1024(RGB)×768 (XGA) |
|---|---|
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 105 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.080×0.240 mm (H×V) |
| Pixel Pitch | 0.240×0.240 mm (H×V) |
| Weight | 1.15Kgs (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 245.76×184.32 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 280×219 mm (H×V) |
| Outline Depth | 17.8 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
Our services
1.Your inquiry about our products or the price will be replied
within 24 hours!
2.We provide 2 years for warranty and lifelong maintaining ,you
will appreciate our warm after-sale service.
3.We will delivery goods as you demand ,you can choose the cheaper
and more convenient way!
4.Apart from the Indoor LED Display, Visionled also can offer you
LED Pharmacy Cross Display, LED Flexible Display, Outdoor LED
Display, LED Gas Price Signs, Indoor/outdoor LED Signs.
| Display Mode | TN, Normally White, Transmissive |
|---|---|
| Brightness | 1000 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Gamut | 40% NTSC (CIE1931) |
| Response Time | 6/19 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/45/75 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.30 (Max.)(5 points) |
| Sunlight Readable | Y |
We can do for You:
100% original new Hard Disk for you.
2．Fast reply:
Our well-developed management system enables us to reply any kind
of customers' inquiry in 24 hours.
3．Delivery Guarantee:
Large Stock System, We have our own warehouses in Shenzhen and Hong
Kong, with comprehensive supply lines.
4．After-Sale Service:
Professional support team to provide effective service, we are
young and full of passion!
5. Professional acknowledgement of hard disks to provide customers
with effective advice.
We have been in hard disk business for more than 6 years and know
the main brands' hard disk very well.
6. Competitive quotation:
Our big customer network ensures us to provide large orders
regularly for these original factories. What's more, our financial
strength enables us to absorb large stock. All these make our price
more and more competitive.
| Vertical Frequency | 60Hz |
|---|---|
| Reverse Scan | Yes (180°) |
| Total Power Consumption | 15.0W (Typ.) |
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| DMF5010NF-FW-BE | Kyocera | 5.2" | 240×64 |
| DMF5010NF-FW | Kyocera | 5.2" | 240×64 |
| DMF5010NBU-FW-BD | Kyocera | 5.2" | 240×64 |
| DMF5010NBU-FW | Kyocera | 5.2" | 240×64 |
| DMF5010NB-FW-BC | Kyocera | 5.2" | 240×64 |
| DMF5010NB-FW | Kyocera | 5.2" | 240×64 |
| KCS6448BSTT-X15 | Kyocera | 10.4" | 640×480 |
| DMF-5001NY-LY-ATE-BBN | Kyocera | 4.7" | 160×128 |
We also have other industrial LCD panels, pls contact to us for the
further information

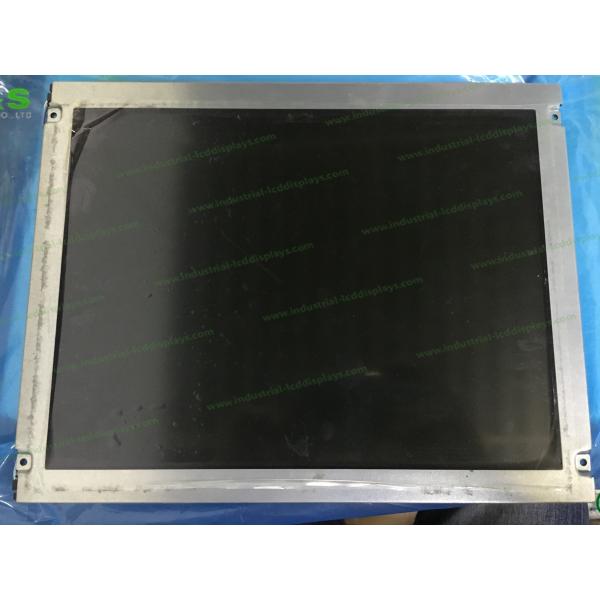

T-55105D121J-FW-A-AAN pictures
|
