| Categories | Zirconia Ceramic Rod |
|---|---|
| Brand Name: | Mingrui |
| Model Number: | ceramic plungers |
| Certification: | ISO9001-2015.,UL,ROAH |
| Place of Origin: | China |
| MOQ: | 5 pieces |
| Price: | USD1.21-5.16 |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 5000 pieces month |
| Delivery Time: | 15-25 working days after the order confirmed |
| Packaging Details: | Use the export carton which is secure against breakager on the MDF pallet |
| custom-made size: | welcome |
| Testing Way: | Strict Quality test one by one |
| Finish: | polished |
| Item: | Industrial Customized Precision Zirconia Ceramic Plungers /Rods |
| Application: | Industrial Ceramic |
| Package: | Wooden Box |
| Fracture Toughness: | 7-10 MPa.m(1/2) |
| Thermal Conductivity: | 3 W/m.k |
| Composition: | ZrO2 94.5% + Y2O3 5.5% |

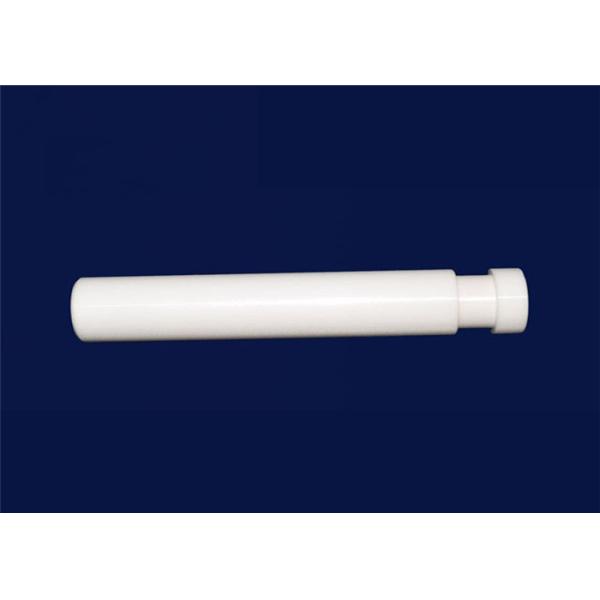

Industrial Customized Precision Zirconia Ceramic Plungers Rods
Feature:
Use temperatures up to 2400°C
High density
Low thermal conductivity (20% that of alumina)
Chemical inertness
Resistance to molten metals
Ionic electrical conduction
Wear resistance
High fracture toughness
High hardness
| Zirconia ceramic are used in shaft , plunger, high-Pressure cleaning machines. sealing structure, auto mobile Industrial, oil drilling equipment, Insulation parts in electrical equipment , ceramic knife, ceramic hair clipper spare parts, with high density, bending strength and breaking tenacity. | |||
| Zirconia ceramics performance | Density | g/cm3 | ≥6.0 |
| Water absorption | % | <0.05 | |
| Firing temperature | °C | 1550 | |
| Hardness | HV | 1350 | |
| Bending strength | MPa | 950 | |
| Compression strength | Mpa | 25000 | |
| Breaking tenacity | Mpa·m1/2 | 8 | |
| Hot expansion coefficient | /°C | 9.5x10-6 | |
| Processing technology | |||
| Process range (mm) | |||
| Outside Diameter | 1---300 | ||
| Inside Diameter | 0.5---300 | ||
| Length | 0.5---800 | ||
| Accuracy of working (mm) | |||
| Perpendicularity | 0.01 | ||
| Concentricity | 0.01 | ||
| Roundness | 0.005 | ||
| Straightness | 0.005 | ||
| Parallelism | 0.01 | ||
| Planeness | 0.005 | ||
| Roughness | 0.05 | ||
| Fit clearance | 0.005 | ||
We can supply the products according to customer's drawings, samples and performance requirement.
precison ceramic, precision ziconia ceramic, zirconia, ceramic part, ceramic structure, zirconia ceramic shaft sleeve pipe roller tube, zirconia ceramic shaft piston and gear, Zirconia ceramic rod, machinable ceramic rod for industry
Properties Sheet of zirconia and alumina :
| Properties | Unit | Alumina | Zirconia | ||||
| 96%Al2O3 | 99%Al2O3 | 99.5%Al2O3 | 99.8%Al2O3 | 99.9%Al2O3 | 3Y-TZP | ||
| Colour | - | White | White | Ivory | Ivory | Translucent | white/black |
| Bulk density | g/cc | 3.78 | 3.88 | 3.93 | 3.93 | 3.98 | 6.03 |
| Water Absorption | % | 0 | 0 | 0 | 0 | 0 | 0 |
| Grain size | μm | 5-10 | 2-5 | 2-5 | 2-5 | 2-4 | 0.4 |
| Bending strength | MPa | 380 | 350 | 360 | 380 | 300 | 1000 |
| KIC | MPa.m1/2 | 3~4 | 4 | 3~4 | 3~4 | 3~4 | 5~8 |
| Vickers Hardness | GPa | 13 | 14 | 14.5 | 14.5 | 15 | 13 |
| Young's Modulus of Elasticity | GPa | 360 | 370 | 370 | 380 | 390 | 200 |
| Thermal Conductivity | W/m° K | 24 | 28 | 32 | 32 | 34 | 2 |
| Coefficient of Linear Expansion | 10-6/°C | 6.7 | 7.2 | 7.2 | 7.2 | 7.2 | 10.5 |
| Dielectric Constant (1MHz) | - | 9.1 | 9.5 | 9.6 | 9.6 | 9.9 | 33 |
| Dielectric Loss Angle (1MHz) | - | 0.0002 | 0.0001 | 0.0001 | 0.0001 | 0.0001 | 0.002 |
| Dielectric Strength | V/m | 15×106 | 15×106 | 15×106 | 15×106 | 15×106 | 11×106 |
| Volume Resistivity | Ohm.cm | >1014 | >1014 | >1014 | >1014 | >1014 | 1013 |
| (RT) | |||||||
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30%
T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
