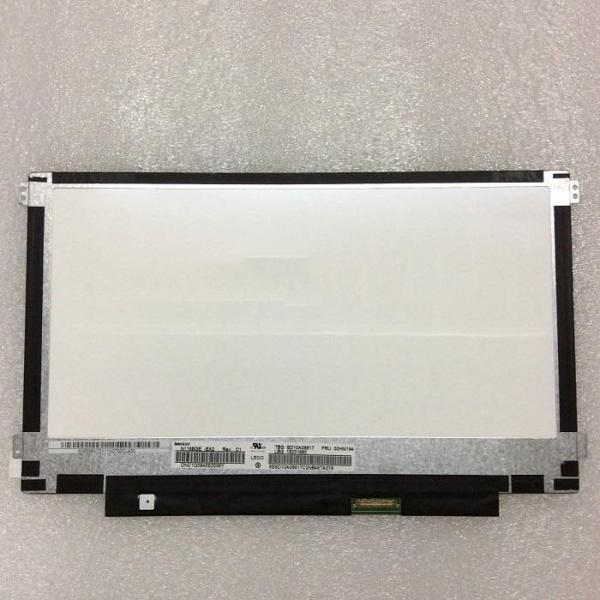

Normally White INNOLUX N116BGE-EA2 Industrial LCD Displays with 256.125×144 mm Active Area Frequency 60Hz

Categories Innolux LCD Panel
Brand Name: Kyocera
Model Number: N116BGE-EA2
Certification: ISO9001
Place of Origin: Japan
MOQ: 1
Payment Terms: T/T, Western Union,paypal
Supply Ability: 100 PCS / DAY
Delivery Time: 2-3 working days after payment confirmation
Packaging Details: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Size: 11.6 inch
Resolution: 1366×768
Active Area: 256.125×144 mm
Contrast Ratio: 500:1 (Typ.)
Frequency: 60Hz
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Normally White INNOLUX N116BGE-EA2 Industrial LCD Displays with 256.125×144 mm Active Area Frequency 60Hz

Normally White INNOLUX N116BGE-EA2 Industrial LCD Displays with 256.125×144 mm Active Area Frequency 60Hz


N116BGE-EA2 Basic Information

Panel ModelN116BGE-EA2
Panel BrandINNOLUX
Descritiona-Si TFT-LCD ,11.6 inch, 1366×768
Panel Typea-Si TFT-LCD
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
RemarkseDP1.2

N116BGE-EA2 Mechanical Features

Dot Resolution1366(RGB)×768 (WXGA)
Pixel ConfigurationRGB Vertical Stripe
Pixel Density135 PPI
Aspect Ratio16:9 (H:V)
Form FactorFlat Rectangle Display
Dot Pitch0.0625×0.1875 mm (H×V)
Pixel Pitch0.1875×0.1875 mm (H×V)
Weight200/210g (Typ./Max.)
SurfaceAntiglare, Hard coating (3H)
Active Area256.125×144 mm (H×V)
Bezel Area259.125×146.8 mm (H×V)
Outline Dimension278×167.9 mm (H×V)
Outline Depth2.85/3.0 (Typ./Max.) mm
Shape StyleSlim (PCBA Flat, Depth ≤3.2mm)
Holes & BracketsFace mounting holes (8 pcs) on left, right slugs
Landscape or PortraitLandscape type
Touch PanelWithout

N116BGE-EA2 Optical Features

Display ModeTN, Normally White, Transmissive
Brightness220 cd/m² (Typ.)
Contrast Ratio500 : 1 (Typ.) (Transmissive)
Display Color262K (6-bit)
Color Gamut45% NTSC (CIE1931)
Response Time3/7 (Typ.)(Tr/Td)
Viewing Angle45/45/20/45 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction6 o'clock
White color ChromaticityWx:0.313; Wy:0.329
White Variation1.25/1.60 (Max.)(5/13 points)
Sunlight ReadableN

Competitive Advantage:
1. Rich experience.
Having been specialized in this field for years, we have rich experience and widespread sales network around the word.

2. Great quality and high purity
Good quality is one secret for our success.

3. Safest and fastest delivery.
We have mass stock, so that we can arrange the delivery within 24hours once receiving the payment. Tracking number would be informed quickly after shipment.
4. Good after-sales service.
24/7 is available. Try our best to solve various problems customers encountered!

The reasons you choose us

1).More competitive price! As a professional LCD Distributor, we have our own souring lines &solutions to support us for the more competitive service, not only the price, but also the stock for the hard-to-find LCD panels.

2).Great quality! All LCD Screen we sent are with good quality guarantee, 100% quality check and full one year warranty!
3).Fast delievery! Delivery time will be faster than others.
4).Great shipping service! We have cooperated with DHL,UPS and EMS for long time, so we could promise save much more money on the shipping cost and better service is offered!
5).Best sale-service! Professional team to service with you before sale, on sale & after service.


Here comes our other LCD panels stock for your easy reference:

Panel ModelBrandSizeResolution
F050A13-603Innolux5.0"720×1280
V500DK2-QS1Innolux50"3840×2160
M270HGE-P01Innolux27.0"1920×1080
V850DK1-QS1 Rev.C1Innolux85"3840×2160
V580DK1-QS2Innolux58"3840×2160
CP047BN01Innolux4.7"720×1280
PH040NA-01CInnolux4.0"480×800
HE080IA-06BInnolux8.0"800×1280
V580DK2-QS1Innolux58"3840×2160
P101JEA-3Z1Innolux10.1"1920×1200
P101DBZ-3Z1Innolux10.1"800×1280
