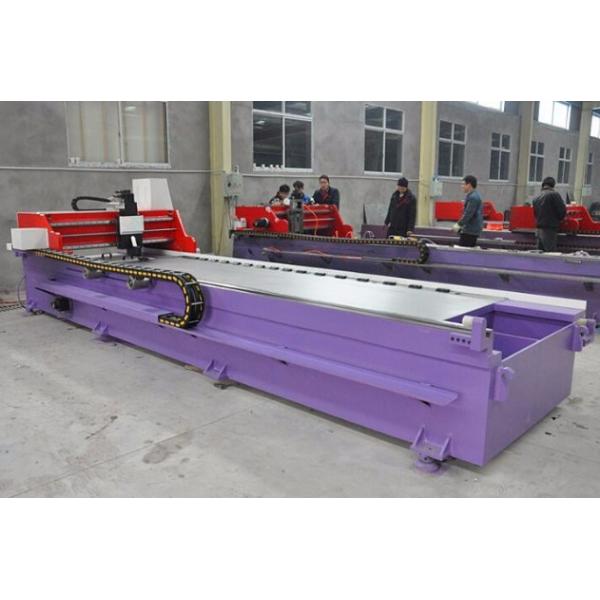

Slotting Machine CNC V, V Cutting Machine with CNC High Speed, CNC 4 Axes Control V Planer
Product Description:
1. Gantry V groover machine with 4 axis are designed and developed
through years of experience in sheet metal working machineries.
2. High speed precision servo drive
3. Full self-plane table with high flat degree
4. Low alloy and high strength structural steel,
overall tempering , good rigidity, strong and durable.
5. Clamp firmly and fast.
6. Durama pneumatic lever extrusion device
7. The durama special stainless steel back support
8. High effciency blowing equipment, avoid to hurt the workpiece
9. The high speed sliding blade carrier equip
10. Two type of knife tool, with three knife, with high planing
efficiency
Main Specification and Technical Parameters:
| 0 | Model | QLV3212 | QLV4012 | QLV4015 | QLV6012 | QLV6015 |
| 1 | Thickness (mm) | 0.6-4 | 0.6-4 | 0.6-4 | 0.6-4 | 0.6-4 |
| 2 | Length (mm) | 3250 | 4050 | 4050 | 6050 | 6050 |
| 3 | Width of sheets (mm) | 1220 | 1220 | 1500 | 1220 | 1500 |
| 4 | Grooving speed (m/min) | 15-60 | 15-60 | 15-60 | 15-60 | 15-60 |
| 5 | Knife rest(Y2 axi) and Y2 axis (m/min) | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
| 6 | Y axis Minimum unit | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| 7 | Y axis Minimum positioning accuracy | 0.05 | 0.05 | 0.05 | 0.05 | 0.05 |
| 7 | Z axis Minimum unit | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
| 9 | Z axis Minimum positioning accuracy | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| 10 | X axis Motor power(kw) | W=4.5 | W=4.5 | W=4.5 | W=4.5 | W=4.5 |
| 11 | Y1-y2- axis Motor power(kw) | W=1 | W=1 | W=1 | W=1 | W=1 |
| 12 | Z axis Motor power(kw) | W=1 | W=1 | W=1 | W=1 | W=1 |
| 13 | Air pressure (Mpa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| 14 | Dimension (L*W*H) | 5200*2350* 2400 | 6000*2350* 2400 | 6000*2650* 2400 | 8000*2350* 2400 | 8000*2650* 2400 |
| 15 | Weight | 6.5 ton | 7.5ton | 9.3ton | 11.3ton | 14.2ton |
Advantages: conventional machine is clamps hold the sheet metal moving over the working table, so the sheet surface is very easy to be scratched.
Now this machine’s biggest advantage is sheet metal fixed, has no relative motion. the work piece is protected perfectly, especially for use in mirror stainless steel plates on decoration, and so that the machine has a high processing speed.
Frame structure with the overall table, mobile gantry beam also welded frame structure, the implementation of the overall welding, tempering after welding the whole, all to ensure the overall good rigidity, have to ensure that the future use is not deformed.
Overall table frame fixed and mobile gantry beam for cutting slotting, grooving speed frequency control, smooth and efficient cutting process, the cutting surface quality is good.
A color touch screen controller adopts special software, Chinese / English operation menu, simple and straightforward. Manual, automatic two working modes to choose from, fully meet the various processing requirements. Man-machine dialogue interface, easy to learn and operate, convenient processing size input, process real-time display, error alarm will automatically
Machine is 4 axes control, the X-axis, Y1 axis, Y2 axis, Z axis. high positioning accuracy, where Y1, Y2 through the PLC synchronization system, guaranteed to always synchronized. X-axis is with inverter controlled AC gear motor. HIWIN brand high precision ball screw, helical rack and pinion driven sound small and precision.
Alone the working table, there is hydraulic clamps. According to different material or thickness, clamping force can be adjusted.
1), the machine uses three alloy knife while processing methods, thus cutting is more evenly, work piece deformation will be reduced, tool life will be longer, production costs cost will be lower.
2), according to different processing job, speed can be selected.
3), with use of square alloy blades, four cutting edges can be used, replacement convenient, greatly reducing tool change time, both to ensure the accuracy
|
