| Brand Name: | OKSMART |
| Model Number: | OKM12864-209 |
| Certification: | SGS |
| Place of Origin: | Shenzhen China |
| MOQ: | 1000 |
| Price: | USD 2.06-3.18 per piece |
| Payment Terms: | Trade Assurance, L/C, T/T, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 970000 pieces per month |
| Delivery Time: | 30-40 working days |
| Packaging Details: | Kraft box / white box to a carton or customized packing |
| Other name: | FSTN mono LCD display module |
| Format: | 128x64 Dots |
| LCD mode: | FSTN/Positive, Transmissive 2-3. |
| Viewing direction: | 12 o’clock 2-4. |
| Driving scheme: | 1/65 Duty cycle, 1/9 Bias 2-5. |
| LCD driving voltage (VOP): | 8.5V 2-7. |

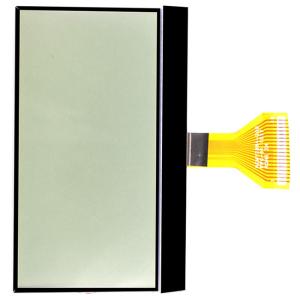

Graphic 128*64 Dots FSTN LCD with pin connector/12864 ST75665P Mono LCD , 100-300 pcs/ctn,5kg-20kg/ctn,400mm*290mm*255mm standard paper carton.
| Pin no | Symbol | Function |
| 1 | CS1B | Chip Select , When /CS= “L”, chip is selected |
| 2 | RESB | When /RST= “L”, the settings are initialized |
| 3 | RS | Selects register date “H” and instruction “L” |
| 4 | D6 | Serial clock input terminal |
| 5 | D7 | Serial data input terminal |
| 6 | VDD | Supply voltage for logic circuit +3.3V |
| 7 | VSS | Ground |
| 8--13 | VOUT,CAP3+ CAP1-,CAP1+, CAP2+,CAP2 | DC/DC voltage converter. |
| 14 | V1 | Driving supply voltage. |
| 15 | V2 | |
| 16 | V3 | |
| 17 | V4 | |
| 18 | V0 |
