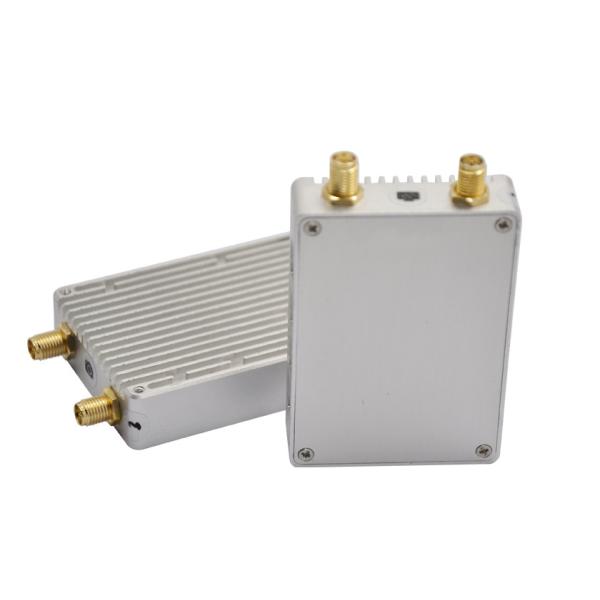

Mini 20km TDD-COFDM Ethernet transmitter long range for UAV system

Mini 20km TDD-COFDM Ethernet transmitter long range for UAV system

Product description

MIMO performance provides multipath immunity resulting in fast & consistent throughput at impressive distances!

FIP-2410 MIMO Digital Data Link is a miniature high power, 2X2 MIMO 2.4GHz wirless solution that provides the bandwidth and range needed for complex data intensive applications. The MIMO TDD features 2X2 MIMO, using Low-Density Parity Check (LDPC) to achieve robust RF performance.

The miniature, lightweight and robust design allows the FIP-2410 to be an ideal candidate for size sensitive applications. The high speed, long range capabilities of the FIP-2410 allow for high quality wireless video and telemetry communications.

Product features:

Modulation: TDD-COFDM
Frequency: 2.4GHz(2.400 - 2.482 GHz)
Air to Ground Distance: 10-14km
Duplex Data: Support SBUS/PPM/TTL
Video Input: RJ45

TX

Dimension: 68×48x15mm

Weight: 68

Support IP Video input, Auto pilot system and UAV nacelle

Double Antenna for transmitting

RX

Dimension: 68×48x15mm

Weight: 68g

Support Ethernet video output, connecting with GS, RC, PC and display

Double Antenna for Receiving

Parameters

Application

About us:

IFLY Bi-Directional Data Links are wireless communication units specifically designed for long range links for various types of unmanned aerial and ground vehicles. It support 5km/10km/20-30km/30-50km/70-120km range. It mostly application is for mapping, emergency, detect and Sea Rescue.

By employing leading wireless technologies, the IFLY family of products delivers long-range communication that supports Bi-directional Data and enables real-time full HD Video Streaming.

IFLY stands out from other UAV communication systems in that it combines control, telemetry and payload into one RF channel and in a compact and lightweight solution.

With AES encryption mechanism, built-in flexibility to optimize to customer needs and robust link that operates in long-ranges and overcomes dead spots, IFLY UAV data link provides safe link for drone communication in government, army and commercial applications.

Why IFLY?

IFLY provides H.264/H.265 ,CODEC RTL IP Cores,
CODEC FPGA Boards, and CODEC FPGA Modules for hardware video systems.

IFLY maintains technique co-operation relationship with some world well-known enterprises, such as Sony ,Panasonnic and Huawei.
IFLY UAV radio links provides comprehensive progress in the video transmission application technology, develop high-standard product solutions and perfect customer service system.

1. Bi-directional and configurable software defined radio (SDR) data link

2. 5km-120km Line-of-Sight (LOS) range

3. ISM Frequency 1.2G/1.3G.1.4G/2.3G/2.4G/2.5Ghz for your option

4. Encrypted & Secured

5. Control, monitoring, telemetry and real-time Full HD rvideo

6. Compatible with Pixhawk fly controller

7. Compact & Lightweight Solution

8. Support Video Input HDMI and IP

9. Latency 15-30ms
