| Categories | Quick Assembly Connector |
|---|---|
| Brand Name: | New Light |
| Model Number: | SC / SC / ST / LC |
| Certification: | CE , ISO , RoHS |
| Place of Origin: | China |
| MOQ: | 100 |
| Packaging Details: | standard packing |
| Price: | 0.26~0.7 |
| Delivery Time: | 7 working days |
| type: | quick assembly connector |
| application: | field assembly |
| Length: | 55/56//58/60 MM |
| installation method: | pre-embedded |
| delivery time: | 2-7 working days after received payment |
| certificates: | CE , ISO, RoHS |
| insert loss: | ≤0.3dB |
| connector type: | SC /FC |
| tensile strength: | >90N |
| suitable for cable: | 0.9 / 2.0 / 3.0mm |
| storage temperature: | -40℃ - +85℃ |
| delivery method: | DHL, TNT, UPS , EXPRESS ( as you like ) |
| Company Info. |
| NEW LIGHT OPTICS TECHNOLOGY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
SC APC quick fiber optic connectors optical patch cord connectors
Product Description
Fiber Fast Connector is used for field assembled optical fiber
connector ,widely used in fiber to the home (FTTH) access optical
networks,to assemble with drop cable quickly.
Application
1.Used to open the FTTH fiber terminal end.
2.In the box, cabinet, such as wiring into the box.
3.Off the back of the accidents such as fiber, maintenance.
4.LAN, wan, data and video transmission.
5.The construction of the fiber end user access and maintenance.
6.Optical fiber access of mobile base station.
Technical Specification
| Item | Parameter |
| Cable Scope | 3.0 x 2.0 mm Bow-type Drop Cable |
| Fiber Diameter | 125μm ( 652 & 657 ) |
| Coating Diameter | 250μm |
| Mode | SM |
| Operation Time | about 15s(exclude fiber presetting) |
| Insertion Loss | ≤ 0.3dB(1310nm & 1550nm) |
| Return Loss | ≤ 55dB |
| Success Rate | >98% |
| Reusable Times | >10 times |
| Tensile Strength | >5 N |
| Tighten Strength of Coating | >10 N |
| Temperature | -40~+85°C |
| On-line Tensile Strength Test (20 N) | IL ≤ 0.3dB |
| Mechanical Durability(500 times) | IL ≤ 0.3dB |
| Drop Test(4m concrete floor, once each direction, three times total) | IL ≤ 0.3dB |

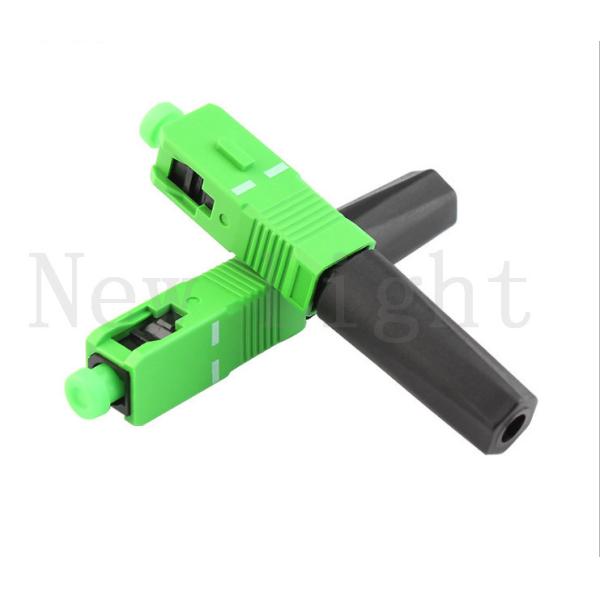

Picture detail of SC Quick Assembly Connector
Packing :
delivery and payment :
more products :
Terminal /distribution box
Adaptor
Patch cord : MOP /MTP/ LC/MTRJ
PLC /pigtail
Any questions,you can feel free to contact us . information as
below :
Alice
cell/ WhatsApp : +8613534063703
|
