| Brand Name: | KingPo |
| Model Number: | Auto-3020 / Auto-4030 |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | To be quoted |
| Payment Terms: | T/T |
| Certification: | Calibration Certificate |
| (X,Y,Z)Measuring travel (mm): | 300*200*200 / 400*300*200 |
| Demo-parts weight: | 30kgs |
| Operation: | Program control CNC |
| Base material: | Precision Granite |
| Body material: | X、Y Precision Granite |
| Kind of drive: | Ball screw&linear rail |
| Supply Ability: | 5 sets per month |
| Packaging Details: | safety carton pack or plywood box |
| Delivery Time: | 40 working days |
| Company Info. |
| KingPo Technology Development Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

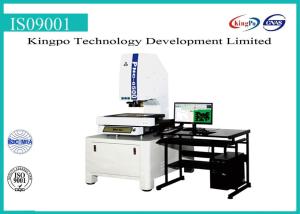

Auto-Gantry Small Travel Series(fully automatic) Image Measuring Machine
Technical Parameters
| Specification | Auto-3020 | Auto-4030 |
| (X,Y,Z)Measuring travel (mm) | 300*200*200 | 400*300*200 |
| Demo-parts weight | 30kgs | 30kgs |
| Z axis trip | 200mm | |
| Operation | Program control CNC | |
| Base material | Precision Granite | |
| Body material | X,Y Precision Granite | |
| Kind of drive | Ball screw&linear rail | |
| Linear accuracy | 3+L/200μm(temperature 20℃±1) relative humidity:55-65% | |
| Repeat accuracy | <3μm | |
| Linear scales | Europe and United imported linear scales1μm(optionally equipped with: 0.5μm/ 0.1μm) | |
| Imaging system | Europe and United high resolution color system | |
| Light source | High brightness | |
| Light source system | Automatic control (16 area table light/contour/coaxial light) | |
| Optical lens | Automatic change lens | |
| Optical power | 30X~180X | |
| Software | AQ-6500 auto measurement software | |
| Hardware | PC+LCD color monitor | |
| Appearance(W*D*H) | 700*800*1000 | 800*900*1000 |
| Machine weight(kgs) | 200 | 250 |
| Power | AC110V~AC220V single phase 50/60Hz | |
| Option/software | 0.5X~10X work object Rocker Coaxial optical components Automatic rotating shaft Instrument rotary table | |
|   |
