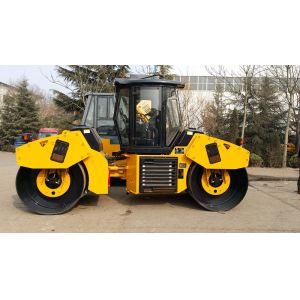

LGDD814 LTXG 14 tons Double drum double hydraulic drive vibratory road rollers

Categories road roller
Brand Name: LTXG
Model Number: LGDD814
Certification: ISO,CE
Place of Origin: China
MOQ: 1 unit
Supply Ability: 500 units/month
Delivery Time: 30-35days
Packaging Details: special package for export
Weight: 14 tons
Vibration Frequency: 40/46Hz
Drum Width: 2100mm
Engine Model: CUMMINS 6BT5.9-150-110Kw
Drum Diameter: 1350mm
Gradeability: 40%
Travel Speed: 0-10km/h
Static Linear Load: 286/286N/cm
Fuel tank capacity: 174L
Hydraulic oil tank capacity: 75L
Condition: New
Overall Dimensions: 5060×2250×3300mm
Drive System: AMERICAN DANFOSS
Vibration system: AMERICAN DANFOSS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LGDD814 LTXG 14 tons Double drum double hydraulic drive vibratory road rollers

LGDD814 Hydraulic vibratory rollers are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller. It is Primarily used for the compaction of road bituminous course, sand gravel mixtures and RCC material, Being a universal compaction equipment for highway, municipal road, park area and industry ground etc.
Main Features
▲Full hydraulic two wheel drive and vibration.
▲Double frequency double vibration system.
▲Hydro static center articulated steering,Optional patented crab mechanism.
▲Cabin with air conditioner,comfortable and spacious,the flexible steering seat facilitate the operation.
▲The driver's cabin can be turned on one side as a whole, to facilitate maintenance.
▲For-type frame, good hold0-down property.
▲Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER of German manufacturer REXROTH.



Model
LGDD814
WeightOperating weight14000kg
Axle load, front7000kg
Axle load, rear7000kg
Form of framefork-type
Compaction CharacteristicsDrum Width2100mm
Drum Diameter1350mm
Drum rim thickness20mm
Vibration frequency40/46Hz
Static linear pressure333/333N/cm
Nominal amplitude (high/low)0.4/0.8mm
Excitation force (high/low amplitude)180/320kN
Driving CharacteristicsSpeed range0-12km/h
Steering angle±38°
Oscillating angle±8°
Theoretical grade ability40%
Min. external turning radius7000mm
Engine CharacteristicsEngine modelCUMMINS6BT5.9
TypeWater cooled, turbo-charged,water cooling
Max. power110kW@2300r/min
Engine oil consumption206g/kW.h
Electrical voltage24V
Service refill capacitiesHydraulic oil tank capacity75L
Fuel tank capacity174L
Water sprinkler systemWater tank capacity1200L
Type of water spraypressure
SeizeOverall Dimensions(LxWxH)5060×2250×3300mm
Ground clearance324mm
Wheel base3717mm
EngineCUMMINS
Vibration systemAMERICAN DANFOSS
Hydraulic Drive SystemAMERICAN DANFOSS
