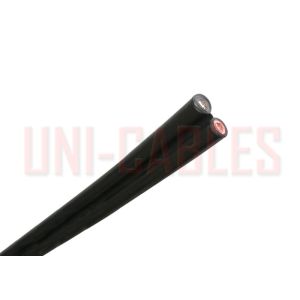

2x4mm2 Double Core Solar PV Cable DC 2000KV PV1-F Photovoltaic System VDE PfG1169

PV1-F Double Core Solar Power Cable DC 0.9/1.8KV Photovoltaic System Cable

APPLICATION

XLPE/LSZH Twin core PV cable is permitted to be installed in cable trays, wireways,conduits, etc. This cable meet the varying needs of the solar industry. Applications include cable routings from module strings to collect boxes and other required routings in balance of system integration.

Construction

Conductor: Fully annealed flexible stranded tinned copper, Class 5 per VDE 0295/IEC60228.

Insulation / Jacket (sheath) : Low-smoke, Zero-Halogen Cross-linked polyolefin

Features

Chemical Features:

• Weather resistant.
• Resistant to mineral oils.
• Resistant to acids & alkaline.

Thermal Features:

• Ambient Temperature : -40oC ~ +90oC.
• Maximum Temperature at Conductor: 120oC (20000h).
• Short Circuit Temperature: 200oC at conductor (max. 5 sec).

Electrical Features:

• Rated Voltage: 0.6/1 kV AC .
• Rated DC Voltage: 1.5 kV.
• Maximum Permitted DC Voltage: 1.8 kV (conductor / conductor, non earthed system, circuit not under load).
• Maximum Permitted AC Voltage: 0.7/1.2 kV .
• Working Voltage: DC 1000 V.
• Insulation Resistance: 1000 MW-km.
• Spark Test: 6000 Vac (8400 Vdc).
• Voltage Withstand: 6500 V as per EN50395 for 5 min.

Technical Data

DIMENSIONS
