| Categories | Purlin Roll Forming Machine |
|---|---|
| Brand Name: | RFM |
| Model Number: | C U Z |
| Certification: | CE,ISO |
| Place of Origin: | CHINA |
| MOQ: | 1 |
| Price: | Pls consult with supplier |
| Payment Terms: | Western Union, T/T, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 30 SETS ONE MONTH |
| Delivery Time: | 40 DAYS |
| Packaging Details: | NUDE |
| name: | c section roll forming machine |
| thickness: | 1.5-3mm |
| control: | PLC |
| speed: | 10-12m/min |
| color: | as request |
| Drive type: | Chain |

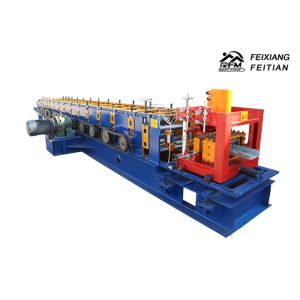

C&U&Z steel purlin channel beam roll forming machine for steel structure
1. C purlin roll forming machine
2. high precise and run throughly
3. reliable quality with CE,BV,ISO certification
4. professional service and engineer
5. good reputation and trustable
Model: C&U Type
| Configurations | Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Body Of Roll Forming Machine, Electro-Motor, Hole-Punch Device ,Cutting Device ,Hydraulic Station ,PLC Control. |
| Control System | PLC Panasonic Inverter |
| Main Frame | 350mm H-Beam |
| Main Power | 15 kw |
| Pump Power | 7.5kw |
| Power Supply | 3Phase,380V,50Hz |
| Forming Speed | 12-14m/min |
| Hydraulic Pressure | 18-20MPa |
| Forming Size | 80-300mm |
| Feeding Thickness | 1.5-3.2mm |
| Roller Station | 12 Stands |
| Roller Diameter | 80mm |
| Backboard Thickness | 18mm |
| Chain Size | 66mm |
| Cutter Standard | Cr12 |
| Roller Standard | Cr12 |
| Cr-Plating Size | 0.05mm |
| Overall Size | 9500×1400×1350mm |
| Total Weight | 6T |
All technical parameters can be changed,according to user's need.


1: How to place order
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK
2: How to visit our company
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
If any questions, you can call me mobile phone at any time:
3: If you want to get more pictures or videos of the machines, I can send them to you by Email or Skype.
A: Warranty: One year ,and we will provide the technical support for the whole life.
B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation
overseas and USD100/person/day for salary.
C: Need one technician.
D: Training time: one week (contains the time of installation and adjustment)
|   |
