Braided Layflat Fire Hose , Blue Heavy Duty Backwash Hose Good Flexibility

Categories PVC Layflat Hose
Brand Name: ET
Model Number: 1''-16''
Certification: ISO9001:2008;SGS
Place of Origin: Shandong, China (Mainland)
MOQ: 1000m
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 4000tons / per year
Delivery Time: 10-15 work days
Packaging Details: woven plastic cloth wrapped, covered by paper card
name: backwash hose
inner diameter: 25mm-408mm
thickness: 1.2mm-3.2mm
working pressure: 2bar to 10bar
material: new pvc and polyester
usage: water pump industries
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

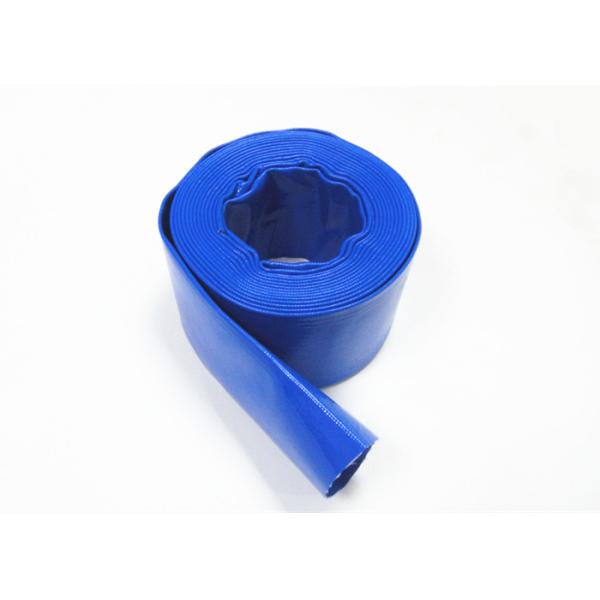

Braided Layflat Fire Hose , Blue Heavy Duty Backwash Hose Good Flexibility

heavy duty layflat fire hose braided backwash hose with blue color​


size1inch to 16inch (25mm to 408mm)
Colorblue, green, yellow, red, black etc
temperature range-5℃ to 65℃
burst pressure6bar to 30bar
features

mildew proofing

application

backwash pool


Construction:

Name: pvc layflat hose

Size available: from 1 inch to 16 inch

Material: new pvc material

Reinforcement: polyester yarn

Color: blue, yellow, green, red, orange etc.

Length per roll: 50m-100m or customized

Working pressure: 2bar to 15bar


Features:

1. New technique: unique one-step forming, high adhesion between lining, reinforcement plies and cover
2. New character: Higher bursting pressure, lighter weight and better abrasion resistance than traditional lay flat hose

3. Resist kinking and twisting, abrasion, corrosion, high pressure and terrible weather.

4. Light weight, good flexibility, easy for rolling-up and storage.

5. Multi-purpose, which used for irrigation, cement filing, river-way sand extraction, water discharge in construction site.

6. Made of environmental materials, non-smell, non-toxic, healthier.


Packaging Details

1.Cardboard+woven bag (Standard Packing, can see the picture below)
2. Korean Style Packing:
Kraft-paper+film
3.Other Packing:
Cardboard+woven bag+Pallet (For big size use Pallet in order to protect the hose)
4.Special Packing: Customized, requesting to customer to send photo

Specification:


Standard Duty PVC Layflat Hose


Inner DiameterWall ThicknessWeightW.P.(at 23℃)Std Length
inchmminchmmkg/mbarpsimft
1250.0471.200.15575100300
1-1/4320.0471.200.17575100300
1-1/2380.0491.250.19575100300
2510.0431.100.22460100300
2-1/2640.0471.200.30460100300
3760.0471.200.35460100300
41020.0471.200.53460100300
51270.0531.350.75460100300
61530.0531.350.90460100300
82030.0711.801.60345100300
102540.0942.402.6034550150
123050.0942.403.1023050150
143580.1183.005.0023050150
164080.1183.006.0023050150

Medium Duty PVC Layflat Hose:

Inner DiameterWall ThicknessWeightW.P.(at 23℃)Std Length
inchmminchmmkg/mbarpsimft
1250.0511.300.168120100300
1-1/4320.0511.300.197100100300
1-1/2380.0511.30.217100100300
2510.0531.350.30690100300
2-1/2640.0571.450.40690100300
3760.0571.450.50690100300
41020.0711.800.80690100300
51270.0751.901.08690100300
61530.0942.401.60690100300
82030.1032.602.2057550150

Heavy Duty PVC Layflat Hose:

Inner DiameterWall ThicknessWeightW.P.(at 23℃)Std Length
inchmminchmmkg/mbarpsimft
1250.0601.500.1910150100300
1-1/4320.0601.500.2110150100300
1-1/2380.0711.70.2910150100300
2510.0611.550.358120100300
2510.0691.750.4010150100300
2-1/2640.0792.000.6010150100300
3760.0792.000.668120100300
3760.0952.400.8010150100300
41020.0832.100.928120100300
41020.0952.401.0010150100300
51270.0751.901.0810150100300
61530.1183.002.008120100300
82030.1263.202.8069050150
