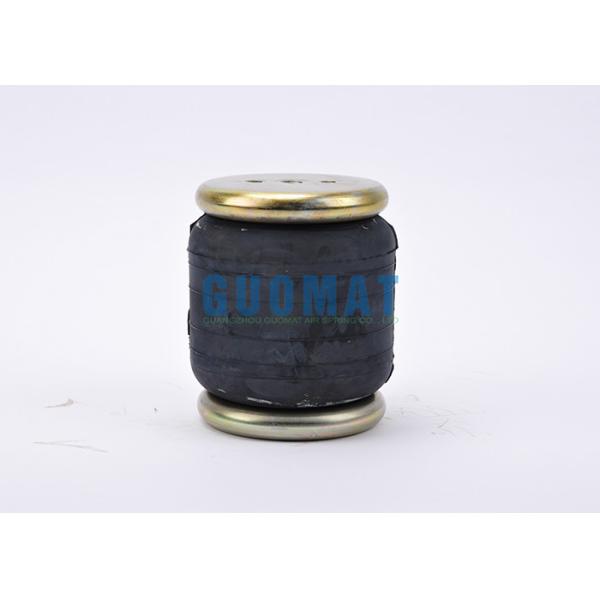

Big Stroke Rubber Bellows Air Spring Shock Firestone W01-358-7725 GUOMAT 1B5725

Firestone W01-358-7725 GUOMAT 1B5725 Big Stroke Rubber Bellows Air Spring Shock

Specifications and Technical Data

GUOMAT Part Number:1B5725

Operating Temperature: 57Cº to -54Cº

Compressed Height: 90mm

Top Cover Plate Diameter: 114.8mm

Bottom Cover Plate Diameter: 114.8mm

Distance Gas Hole Between Nut 22 mm

Top Cover Plate Screw (Nut) Tooth :2pcX3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcX3/8-16UNC

The Working Stroke : MAX 141 mm to MIN 60 mm

Gas Hole / Air inlet : 1/4-18NPTF

Quick Details:

Item Height: 14.1 cm

Item Width:11.48 cm

Special Features: Vibration

Testing Certification: TS16949

Item Length:14.1 cm

Material Type: Rubber+steel

Product Description

Single convoluted air spring with crimpled plated ,also avaiable with other air inets

1. High quality

2. Competitive price

3. MOQ : 10 PCS

4. Warranty :One year

5.Cross Information: Firestone W013587725,W01-358-7725, ,WO1-358-7725, WO13587725

Guangzhou Guomat Air Spring Co., Ltd. is located in Guangzhou, about 15min’s drive from Baiyun Airport. Our mainly products are air spring, rubber bellows, air suspension spring, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.

GUOMAT Factory gate：

Established in 2008, Our company covers 20,000㎡ and is located in Taihe Town Baiyun District. With the rapid development of our company, we are equipped with modernized workshop and advanced rubber air springs equipments now. We are the first company who started air spring business and has become one of the largest air spring manufacturing bases in China.

In 2017, we launched a collaboration with High Tech of US customers to customize the products of our customers and the logo of our customers. Every year, there are about 10,000 orders. In continuous cooperation, the products meet the international inspection standard ISO/TS16949:2009, and the customers are very satisfied with the products produced. This is our high recognition from American customers and also gives us Great motivation.

In 2018, we started cooperation with German GmbH, mainly industrial air springs, which are suitable for industrial equipment. We have successfully developed and produced the natural air-seal of the skin to reach the 700mm flanged air spring, the customer's annual demand is a few hundred.

With the development of business and demand for customers, our company introduced business with TomLog Corporation in 2010, our strategic cooperative partner in Taiwan. Then we developed air compressor program and air spring related business, in 2015, America Goodyear Corporation met with the transfer of shares in the North American plant, our company was granted with sale agent for air springs in China, providing more choice for our customers. Our company adopts the most advanced domestic air spring processing equipment and international production technology. Combined with unique production process, our company strictly execute international standards for production and spare no efforts to create the world-class products. We will endeavor to make air spring widely used at home and abroad, and let more and more customers to enjoy the best damping effect.
