Name: High Rebound Resilience Oxygenfree Copper Conductors Customized Coil Cable
Brand: Spiral Cable
Price: 0.14 USD

Home > Electrical Wires >

High Rebound Resilience Oxygen-free Copper Conductors Customized Coil Cable

Categories	Spring Cable
Brand Name:	Spiral Cable
Model Number:	TH-815115
Certification:	UL, CUL, CSA, AWM, CE
Place of Origin:	Dongguan, China
MOQ:	200 PCS
Price:	USD0.14~0.49 per piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	800,000pcs per month
Delivery Time:	10 days for ready goods
Packaging Details:	200pcs per carton box
Category:	Coil Cable
Feature:	High Rebound Resilience Force
Rated Temperature:	80 degree
Rated Voltage:	300V
Dimensions:	To be customized per request
Standard:	RoHS Compliant

Contact Now

Add to Cart

Company Info.

Dongguan Tongheng Electronics Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

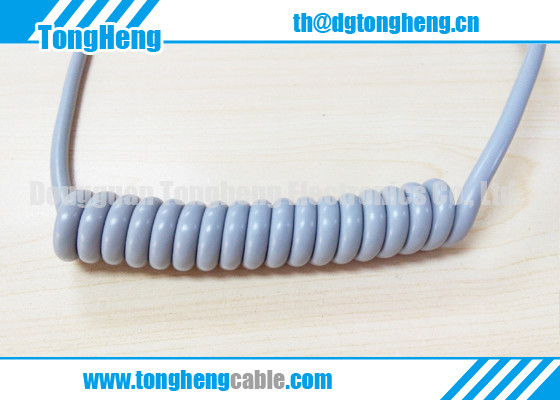

High Rebound Resilience Oxygen-free Copper Conductors Customized Coil Cable

High Rebound Resilience Oxygen-free Copper Conductors Customized Coil Cable

Coil Cable is Tongheng main products. High Rebound Resilience Oxygen-free Copper Conductors Customized Coil Cable can be customized exactly following customers requirement. As the professional manufacturer, Tongheng staff engage to present customer the best quality article. High Rebound Resilience Oxygen-free Copper Conductors Customized Coil Cable is one of the excellent example. Its remarkable advantage is very high rebound resilience force.

Here below is the product properties:

Conductor material: oxygen free copper wires

Feature: high rebound resilience force

Made by: China cable factory

Spec is to be customized per customer request.

Product parameters:

Coil Cable	Conductor Strands	Insulation Thickness	Nominal Diameter	Screened Coverage	Sheath Thickness	Overall Diameter	Conductor Resistance
Coil Cable	AWG	mm	mm	%	mm	mm	Ω/KM(20℃)
2C	30	0.38	1.10	≥65	0.76	4.40	381.00
2C	28	0.38	1.20	≥65	0.76	4.50	239.00
2C	26	0.38	1.30	≥65	0.76	4.60	150.00
2C	24	0.38	1.40	≥65	0.76	4.90	94.20
2C	22	0.38	1.60	≥65	0.76	5.10	59.40
2C	20	0.38	1.80	≥65	0.76	5.50	36.70
2C	18	0.38	2.10	≥65	0.76	6.10	23.20
2C	16	0.38	2.40	≥65	0.76	6.90	14.60
3C	30	0.38	1.10	≥65	0.76	4.50	381.00
3C	28	0.38	1.20	≥65	0.76	4.70	239.00
3C	26	0.38	1.30	≥65	0.76	4.90	150.00
3C	24	0.38	1.40	≥65	0.76	5.10	94.20
3C	22	0.38	1.60	≥65	0.76	5.30	59.40
3C	20	0.38	1.80	≥65	0.76	6.00	36.70
3C	18	0.38	2.10	≥65	0.76	6.60	23.20
4C	30	0.38	1.10	≥65	0.76	4.70	381.00
4C	28	0.38	1.20	≥65	0.76	4.90	239.00
4C	26	0.38	1.30	≥65	0.76	5.20	150.00
4C	24	0.38	1.40	≥65	0.76	5.60	94.20
4C	22	0.38	1.60	≥65	0.76	5.90	59.40
4C	20	0.38	1.80	≥65	0.76	6.40	36.70
5C	30	0.38	1.10	≥65	0.76	4.90	381.00
5C	28	0.38	1.20	≥65	0.76	5.10	239.00
5C	26	0.38	1.30	≥65	0.76	5.20	150.00
5C	24	0.38	1.40	≥65	0.76	5.60	94.20
5C	22	0.38	1.60	≥65	0.76	6.20	59.40
6C	30	0.38	1.10	≥65	0.76	5.10	381.00
6C	28	0.38	1.20	≥65	0.76	5.50	239.00
6C	26	0.38	1.30	≥65	0.76	5.90	150.00
6C	24	0.38	1.40	≥65	0.76	6.20	94.20

Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.
