| Categories | PLC Programmable Logic Controller |
|---|---|
| Brand Name: | Mitsubishi |
| Model Number: | FX3U-48MT |
| Certification: | CE |
| Place of Origin: | Japan |
| MOQ: | 1 |
| Price: | 1-1000USD |
| Payment Terms: | T/T / Paypal |
| Supply Ability: | 50 |
| Delivery Time: | In Stock |
| Packaging Details: | New Original Box |
| Product Name: | PLC Programmable Logic Controller |
| Model: | FX3U-48MT |
| Voltage: | 24VDC |
| Output: | 5-30 VDC |
| Power: | 25W max |
| Current: | 0.5A |
| Company Info. |
| Shenzhen Wisdomlong Technology CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
MITSUBISHI, MELSEC, FX3U-48MT, PLC Module PLC Programmable Logic
Controller
Quick Detail
PLC FX3U - Top of the Line
Controllable I/O: 16 - 384 points with CC-Link or AS-i remote I/O
Main Unit I/O: 16/32/48/64/80/128 points
FX3U Main Units with 16 I/O
Model Number | FX3U-16MR/DS | FX3U-16MR/ES | FX3U-16MT/DSS | FX3U-16MT/DS | FX3U-16MT/ESS | FX3U-16MT/ES |
Stocked Item | S | S | S | S | S | S |
| Certification | UL • cUL • CE (EMC) | |||||
Integrated Inputs/ Outputs | 16 | 16 | 16 | 16 | 16 | 16 |
| Power Supply | 24VDC | 100-240VAC | 24VDC | 24VDC | 100-240VAC | 100-240VAC |
Integrated Inputs | 8 | 8 | 8 | 8 | 8 | 8 |
Integrated Outputs | 8 | 8 | 8 | 8 | 8 | 8 |
| Output Type | Relay | Relay | Transistor (Source) | Transistor (Sink) | Transistor (Source) | Transistor (Sink) |
Power Consumption (W) | 25 | 30 | 25 | 25 | 30 | 30 |
| Weight (kg) | 0.60 | 0.60 | 0.60 | 0.60 | 0.60 | 0.60 |
Dimensions mm | 130 x 90 x 86 | 130 x 90 x 86 | 130 x 90 x 86 | 130 x 90 x 86 | 130 x 90 x 86 | 130 x 90 x 86 |
FX3U Main Units with 32 I/O
| Model Number | FX3U-32MR/DS | FX3U-32MR/ES | FX3U-32MT/DSS | FX3U-32MT/DS | FX3U-32MT/ESS | FX3U-32MT/ES | FX3U-32MR/UA1 | FX3U-32MS/ES |
Stocked Item | S | S | S | S | S | S | S | S |
| Certification | UL • cUL • CE (EMC) | |||||||
Integrated Inputs/ Outputs | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
Power Supply | 24VDC | 100-240VAC | 24VDC | 24VDC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
Integrated Inputs | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Integrated Outputs | 16 | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
Output Type | Relay | Relay | Transistor (Source) | Transistor (Sink) | Transistor (Source) | Transistor (Sink) | Relay | Triac |
| Power Consumption (W) | 30 | 35 | 30 | 30 | 35 | 35 | 35 | 35 |
| Weight (kg) | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 | 0.65 |
Dimensions (W x H x D) mm | 150 x 90 x 86 | 150 x 90 x 86 | 150 x 90 x 86 | 150 x 90 x 86 | 150 x 90 x 86 | 150 x 90 x 86 | 182 x 90 x 86 | 150 x 90 x 86 |
FX3U Main Units with 48 I/O
Model Number | FX3U-48MR/DS | FX3U-48MR/ES | FX3U-48MT/DSS | FX3U-48MT/DS | FX3U-48MT/ESS | FX3U-48MT/ES |
Stocked Item | S | S | S | S | S | S |
| Certification | UL • cUL • CE (EMC) | |||||
Integrated Inputs/ Outputs | 48 | 48 | 48 | 48 | 48 | 48 |
| Power Supply | 24VDC | 100-240VAC | 24VDC | 24VDC | 100-240VAC | 100-240VAC |
Integrated Inputs | 24 | 24 | 24 | 24 | 24 | 24 |
Integrated Outputs | 24 | 24 | 24 | 24 | 24 | 24 |
| Output Type | Relay | Relay | Transistor (Source) | Transistor (Sink) | Transistor (Source) | Transistor (Sink) |
Power Consumption (W) | 35 | 40 | 35 | 35 | 40 | 40 |
| Weight (kg) | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 | 0.85 |
Dimensions mm | 182 x 90 x 86 | 182 x 90 x 86 | 182 x 90 x 86 | 182 x 90 x 86 | 182 x 90 x 86 | 182 x 90 x 86 |
FX3U Main Units with 64 I/O
Model Number | FX3U-64MR/DS | FX3U-64MR/ES | FX3U-64MT/DSS | FX3U-64MT/DS | FX3U-64MT/ESS | FX3U-64MT/ES | FX3U-64MR/UA1 | FX3U-64MS/ES |
Stocked Item | S | S | S | S | S | S | S | S |
| Certification | UL • cUL • CE (EMC) | |||||||
Integrated Inputs/ Outputs | 64 | 64 | 64 | 64 | 64 | 64 | 64 | 64 |
| Power Supply | 24VDC | 100-240VAC | 24VDC | 24VDC | 100-240VAC | 100-240VAC | 100-240VAC | 100-240VAC |
Integrated Inputs | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Integrated Outputs | 32 | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Output Type | Relay | Relay | Transistor (Source) | Transistor (Sink) | Transistor (Source) | Transistor (Sink) | Relay | Triac |
| Power Consumption (W) | 40 | 45 | 40 | 40 | 45 | 45 | 45 | 45 |
| Weight (kg) | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
Dimensions (W x H x D) mm | 220 x 90 x 86 | 220 x 90 x 86 | 220 x 90 x 86 | 220 x 90 x 86 | 220 x 90 x 86 | 220 x 90 x 86 | 285 x 90 x 86 | 220 x 90 x 86 |
FX3U Main Units with 80 I/O
| Model Number | FX3U-80MR/DS | FX3U-80MR/ES | FX3U-80MT/DSS | FX3U-80MT/DS | FX3U-80MT/ESS | FX3U-80MT/ES |
Stocked Item | - | S | - | S | S | S |
| Certification | UL • cUL • CE (EMC) | |||||
Integrated Inputs/ Outputs | 80 | 80 | 80 | 80 | 80 | 80 |
Power Supply | 24VDC | 100-240VAC | 24VDC | 24VDC | 100-240VAC | 100-240VAC |
Integrated Inputs | 40 | 40 | 40 | 40 | 40 | 40 |
Integrated Outputs | 40 | 40 | 40 | 40 | 40 | 40 |
Output Type | Relay | Relay | Transistor (Source) | Transistor (Sink) | Transistor (Source) | Transistor (Sink) |
Power Consumption (W) | 45 | 50 | 45 | 45 | 50 | 50 |
Weight (kg) | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 |
Dimensions mm | 285 x 90 x 86 | 285 x 90 x 86 | 285 x 90 x 86 | 285 x 90 x 86 | 285 x 90 x 86 | 285 x 90 x 86 |
FX3U Main Units with 128 I/O
| Model Number | FX3U-128MR/ES | FX3U-128MT/ESS | FX3U-128MT/ES |
| Stocked Item | S | - | - |
| Certification | UL • cUL • CE (EMC) | ||
| Integrated Inputs/Outputs | 128 | 128 | 128 |
| Power Supply | 100-240VAC | 100-240VAC | 100-240VAC |
| Integrated Inputs | 64 | 64 | 64 |
| Integrated Outputs | 64 | 64 | 64 |
| Output Type | Relay | Transistor (Source) | Transistor (Sink) |
| Power Consumption (W) | 65 | 65 | 65 |
| Weight (kg) | 1.8 | 1.8 | 1.8 |
| Dimensions (W x H x D) mm | 350 x 90 x 86 | 350 x 90 x 86 | 350 x 90 x 86 |
FX3UC Main Units with 16 - 96 I/O
Model | FX3UC-16MT/D | FX3UC-16MT/DSS | FX3UC-16MR/DS-T | FX3UC-32MT/D | FX3UC-32MT/DSS | FX3UC-64MT/D | FX3UC-64MT/DSS | FX3UC-96MT/D | FX3UC-96MT/DSS |
Input Type | Sink | Sink / Source | Sink / Source | Sink | Sink / Source | Sink | Sink / Source | Sink | Sink / Source |
Weight (kg) | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.35 | 0.35 |
Melsec FX3U Communication Board
FX3U-232-BD RS-232C SERIAL PORT (1 CH)
FX3U-422-BD RS-422 SERIAL PORT (1 CH
FX3U-485-BD RS-485 SERIAL PORT (1 CH)
FX3U-CNV-BD FX3U MODULE TRANSFORM UNIT
FX3U-USB-BD USB COMMUNICATION PORT(FOR ALL FX SERIES PLC)USB
Melsec FX3U Modules
FX3U-2HSY-ADP 2 CHANNELS PULSE TRAIN OUTPUT
FX3U-4AD-ADP
FX3U-4AD-PT-ADP
FX3U-4AD-TC-ADP
FX3U-4DA-ADP
FX3U-4HSX-ADP 4 CHANNELS HIGH SPEED COUNTER

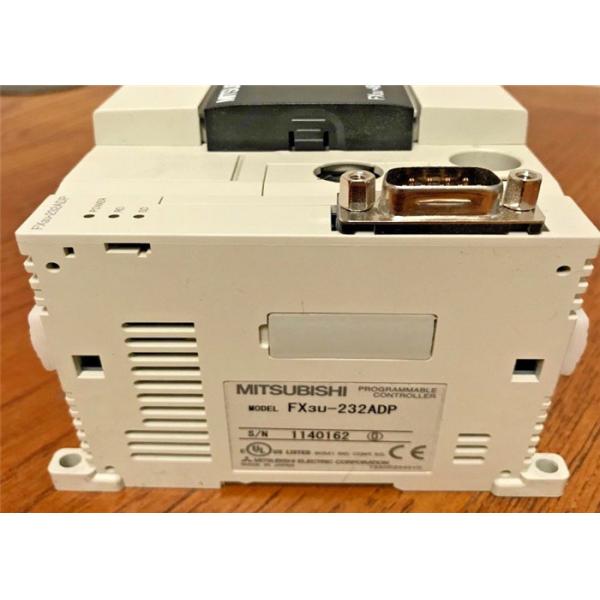

FX3U-232ADP RS232 COMMUNICATION MODULE
FX3U-485ADP RS485 COMMUNICATION MODULE
Melsec FX3U Modules
FX3U-4AD
FX3U-4DA
FX3U-7DM DISPLAY PANEL
FX3U-7DM-HLD DISPLAY PANEL HOLDER
FX3U-20SSC-H 2 CHL SSC-NET MODULE
FX3U-32BL BACKUP BATTERY FOR FX3UC CPU
SIM Card
FX3U-FLROM-16 16K FLASH ROM MEMORY CASSETTE 16K
FX3U-FLROM-64 64K FLASH ROM MEMORY CASSETTE 64K
FX3U-FLROM-64L 64K PLC PROGRAM TRANSFER UNIT
