Advanced Micro portable vickers hardness tester Machine With Touch Screen

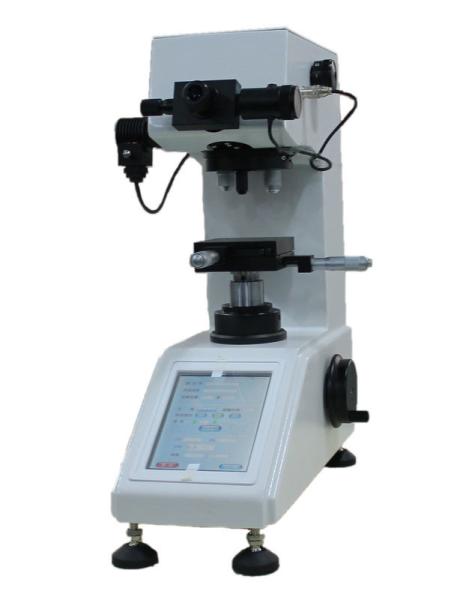

HV-1MDT Advanced Micro Vickers Hardness Tester
(Touch Screen, Digital eyepiece, Built-in Printer, Auto-Turret)

Main Description:
1. The standard 8-speed force, from 10gf (0.098N) - 2kgf (19.6N), users can customize the test force;
2. 50X, 100X, 200X, 400X, 500X magnification optionally two kinds, up to 1000-fold;
3. Each indentation under magnification (any two lens) can be under significant number of measurements;
4. Based on the standard block different forces, the hardness value is automatically corrected;
5. The touch-screen interface, easy to operate, in any language version;
6. Enter, save more test samples and the operator and other information;
7. U disk data is saved directly to EXCEL format for easy editing and processing;
8. Using a modular design, easy maintenance;
9. External camera or upgrade to automatic hardness.
Application fields:
Heat treatment, carbide, quench hardened layer, the surface coating layer, steel, non-ferrous metal and small and thin shape parts, etc.
Operation Interface:
Main Interface: Automatic correction under different time and test force:



Technical Specifications:

Standard Accessories:

Note:
Special accessories: special accessories according to user needs rationing custom, the price is another plan.
1. Knoop indenter: can measuring some high hardness materials.
2, Provide 6.8 inch LCD screen can be equipped with, have tested indentation in the display on the screen and the measurement.(include 8.4 Inches-sized LCD,PS-2006 CCD Video Measuring Device, Video Connecting Cable, Power cable)
3.Can be equipped with image acquisition device, will impress clearly shown on a computer screen for




FAQ:
1 Standard accessories include Vickers Indenter?

Yes, the Micro vickers indenter included ( installed on the tester when delivered)

- 2 The system is Auto-Turret?

The model HV-1MD is equipped with Auto-Turret (Motorized Turret).

- 3 What is the Illumination system?

The illumination system is halogen lamp light source 6V,6W.

We used to adopt the cold light source, but after a period experience. The most customers prefer the halogen lamp.

- 4 In the Display, what can we have?

You can get the information, such as Hardness Value, D1,D2, Hardness conversion scale, Dwell time,intensity of light source,Test No.Test date, Test time.

You can find more information the enclosed instruction manual at the attachment.

- 5 What are the Execution Standard?

GB/T4340.1, GB/T4340.2, ISO 6507-1,ISO6507-2 and ASTM E384

- 6 Which hardness scales can we have in this equipment?

HV0.01, HV0.025,HV0.05,HV0.1, HV0.2, HV0.3, HV0.5,HV1

- 7 You tell that with the equipment come 2 micro Vickers hardness block (high and low). For what Vickers scale?

High value test block 720~780 HV1 Low value test block 420~480 HV0.2

- 8 You tell that magnification is 400X and 100X. It means one eyepiece 10X and objective 10X and 40X?

Yes, 1 pc of 10X eyepiece, and 1pc of objective 10X and 1pc of objective 40X.

- 9 The measurement is automatic?

Yes, Automatic for(Loading, Dwell, Unloading)

- 10 Is the LCD screen devices optional?

Yes, the LCD screen measuring device HV-TV is optional.

You can technic information of HV-TV LCD screen measuring device and the instruction manual.
