| Categories | CNC Plasma Cutting Machine |
|---|---|
| Brand Name: | Metalwork |
| Model Number: | CNC3-2500X6000 |
| Certification: | CE, ISO, CCC |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100 sets per month |
| Delivery Time: | 40 days |
| Packaging Details: | 1 x 20' GP |
| CNC system: | Hypertherm, Fangling, etc. |
| Height controller: | Hongyuda, Hypertherm, etc. |
| Nesting software: | FastCAM, InteGNPS, etc. |
| Effective cutting size: | 2500X6000mm |
| Flame cutting thickess: | 6-150mm |
| Cutting mode: | Flame cutting |
| Company Info. |
| METALWORK MACHINERY (WUXI) CO.LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

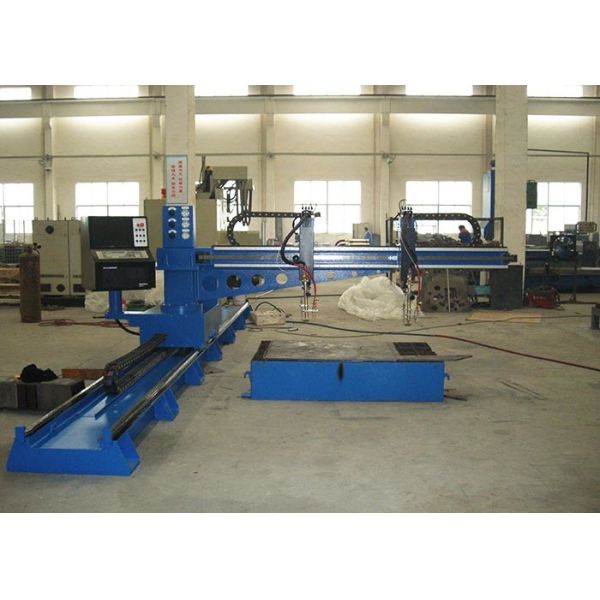

Customized Gas CNC Plasma Cutting Machine CNC3-2500X6000 Cantilever Type Double Gas Torches
Application Scope and Material:
CNC cantilever type flame cutting machine can cut mild steel (flame cutting) and high carbon steel with 6-150mm thickness. Also can be programmed to cut any plane shape parts composed of Beeline and Arc, which are same as large gantry cutting machines.
It is equipped with an LED with dynamic and static graphical display. It is directly perceived and very easy to learn. It can be programmed to cutting parts directly, and also can be operated in computer translating instructions into a program file by CAD program. The standard positioning of this machine is Flame Cutting, but Plasma Cutting is also excellent.
Thus is widely applied in industries such as automobile, shipbuilding, machine tools, pressure vessels, engineering machinery, mining machinery,electric power, building bridges, steel Industries.
Machine Structure:
|  | Effective cutting width: 1500mm~2500mm Effective cutting length: 3000mm~6000mm Linear rail adopted to assure high cutting efficiency |
|  | USA MicroEDGE system USA EDGEII system China FL-2500 system China Adtech HC6500 system |
|  | Japan Pansonic Servo Motors |
|  | Japan Shimpo Reducer |
|  | Flame cutting torch with auto ignitor and auto height controller |
Features:
1. Cantilever structure, which is easy for moving and packing. The
X axis adopts liner rail to ensure running speed and accuracy.
2. Cutting head with cooling system can quickly cool surface of
material to avoid burr and residue.
3. Power supply adjusts current according to different thickness of
the material to ensure cutting materials without burn.
4. Processed Materials of small and neat kerf, without secondary
processing.
5. Advanced control system, large capacity storing function,
convenient to read and process.
6. Applicable industry: advertising industry, arts and handicrafts
cutting, metal plate cutting.
Technical Parameters:
| Model | CNC3-2500 |
| Effective cutting width | 2500mm |
| Effective cutting length | 3000-6000mm |
| Cutting thickness | Flame: 6-150mm; Plasma determined by selected cutting power |
| Cutting speed | 50-1000mm/min |
| Returning speed | 50-3000mm/min |
| Cutting roughness | Ra12.5mm |
| Cutting precision | ±0.5mm/m |
Cutting Samples:
