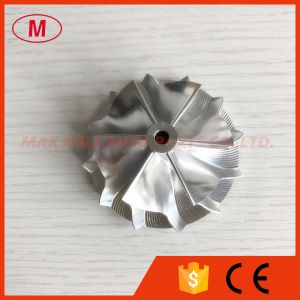

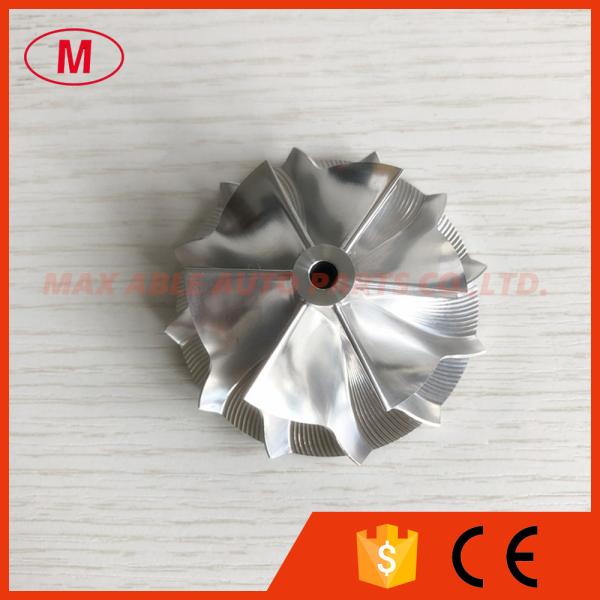

K04 47.15/58.65mm 6+6 blades High performance Turbocharger milling/aluminum 2618/billet compressor wheel

1. MODEL:K04 forward

2.K04 47.15/58.65mm 6+6 blades High performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
3.Size:

Nose diameter:10.25mm

Inducer:47.15mm

Exducer:58.65mm

Tapered tip exducer:62.46mm

Tip height:4.30mm

Overall height:27.66mm

Superback:2.60mm

Bore size:4.61mm

Trailing angle:60 degree

Cutback:8.0

SP height angle:0.00

Splitter height:12.10

Blade height:23.30mm

6+6 blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.Any questions please send email to me

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

We are specialized in Bosch ,Delphi,Denso ,Simens genuine and brand new  nozzle ,injector ,plunger ,control valve ,head rotors and we also specialized in made in China nozzle ,plunger ,head rotor ,injectors diesel parts and turbocharger and turbocharger spare parts.

We have factory to produce the turbocharger and turbocharger parts.

High quality and competive price can satisfy with your requirement.
