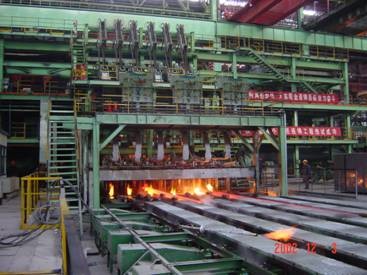

Thin slab type Carbon Steel and ally steel CCM Continuous Casting Machine

CCM Continuous Casting Machine Rectangle section size 330x360 mm

1.1:Main parameters

Type of the CCM

Arc type billet CCM

Radius of the arc R=6000mm

Flow QTY 3 device, 3 flow

Distance between flows 1200mm

Billet size 120*120mm 150*150mm φ110-φ160mm

Billet length 3.7-12m

Support type for ladle ladle rotation platform

tundish QTY 2set

Tundish type, capacity 12t

Cylinder control plug on/off type, capacity 12T

Type of Crystallizer structure steel pipe with water jacket

Guide device for billet upper moveable, lower fixed

Speed of the pull/straightener 0.6-6.0m/min

Cutting type torch cutter

Billet pulling out type rail, double layer, roll over type cooling bed, billet puller

Rail speed 32m/min

Billet roll over capacity 3.2t

Steel construction platform

Supper platform level +6.700m(rail level+0.60m)

Supper platform L*W 23800*13100mm

Lower platform level +4.05mm

Length of the CCM( from base line to fixed baffle) 39680mm

1.2Main technical specification

1.2.1 Ladle rotation platform

Load capacity 2*80t (40t,40t, liquid steel 40t, ladle weight 40T)

Rotation radius 3500mm

Rotation speed normal,1r/min ,open,start/stop 0.1rpm

Rotation angle ±180°;break down±360°

Motor for rotation YZR160MB-6 AC 8.5kW 930r/min uniaxial stretch IM1001

Isolation level IP54

Rotation speed when fault 0.5rpm

Rotation angle when fault 180°

A2F63W2P1 P=10-13Mpa

Hydraulic rotation motor when fault , 471r/min N=5.2-6.8kW

Arc radius 6000mm

Billet size 120*120mm, 150*150mm,φ110-φ160mm

Length of the copper pipe spuare billet 750mm,billet size 750

round billet D800mm

Rectangle section size 330x360 mm

Beijing Sino Steel Engineering & Equipment Co., Ltd. is concentrating on developing of ferrous & non-ferrous making and Rolling technology, mainly.

As one of the most experienced Chinese suppliers of complete line and components for steel and non-ferrous industries, Beijing Sino Steel Engineering & Equipment Co., Ltd. is engaged in design, manufacturing, engineering and service activities on word-wide basis.

Overseas Partners (Office):

India, Indonesia, Malaysia, Thailand, Korea, Turkey, UAE, Qatar, Iran, Saudi Arabia, Kuwait, Germany, France, Canada, USA, Brazil, Etc.

MAIN SCOPE SUPPLY:

EPS Project Line:

EAF, LF, Continuous Casting Machine, Preheating Furnace, Hot Rolling Mill Line, Cold Rolling Line, Centrifugal Casting Line, Slitting Line,Cut-to-length Line, Cleaning Line, Pickling Line, Coating line, Levelling line, Billet grinding line ETC.

Components & Parts:

Mill stand, Coiler, Uncoiler, Gearbox, Leveller, Copper Mould Tube, Copper Mould Plate, Water Jacket, Water Cooled Cable, Forged Rolls, Casting Rolls, Roll Shell, Roll Core,Bearing, Universal Shaft, Lathe, ETC.

​
