| Categories | UV LED Curing Equipment |
|---|---|
| Brand Name: | Syochi |
| Model Number: | SCJ-1202028B-01 |
| Certification: | CE&RoHs certification |
| Place of Origin: | Shenzhen, Guangdong, China |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | Western Union, MoneyGram, L/C, T/T, Paypal |
| Supply Ability: | 500 set per month |
| Packaging Details: | Inside: 1 unit UV Curing system packed with PE Foam Outside: Standard Export Carton |
| Product name: | Portable UV LED curing lamp |
| UV wavelength: | 395nm (optional) |
| Emitting window size: | 120x20mm (customized available) |
| Cooling method: | air cooling |
| Main parts: | LED lamp and controller |
| Warranty: | One year |

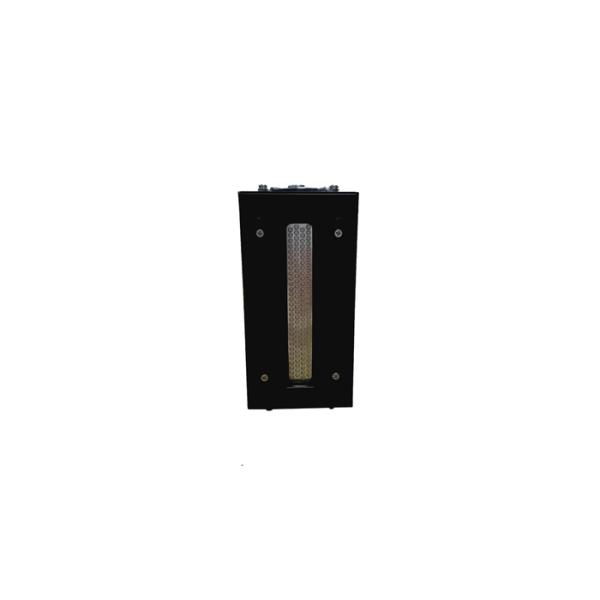

395nm air cooling portable UV LED curing lamp for coating drying
Specifications
| Model No. | SCJ-1202028B-01 | Qty of UV lamp(pcs) | 2 |
| Cooling way | fan cooling | Ambient temperature (℃) | 10-50 |
| Wavelength (nm) | 395 | Input | AC220V, (optional) |
| Emitting size (mm) | 120x20 | Power per Lamp (W) | 300 |
| Irradiate distance (mm) | 5-10 | Control method (optional) | level control (3-24V) |
| Irradiation intensity (W/cm²) | 5-10, adjustable | Lifespan (H) | 20000 |
| Advantages | Features |
| Extra-long lifespan; Energy saving: save 80% electrical energy than Mercury lamp ; Environment friendly: No mercury. No ozone; No warm-up time; Low temputure; UV output adjustment: From 1% to 100%; Multiple control modes: Switching, Voltage or other. | High light intensity; Light intensity auto adjust according printer speed; Light intensity and be adjust and display; Light can on/off part or full according different print size; Temperature display and over temperature control; Single UV lamp can be controlled independently; Warning while short circuit; Over temperature alarm, assure the products work well |
1. Syochi has been in LED packaging industry for 10 years. Complete production chain ensure our quick lead time and competitive price.
2. Syochi has been in UV industry for 5 years and it’s the first China COB UV led manufacturer.
3. Syochi has professional and efficiency research team to make the products more innovative, humanism and intelligent in UV led curing area.
4. Syochi has nearly 20 patents to keep our products no disputes.
5. Syochi has strict quality control system and timely after-sales service promise, which make us get a good reputation.
Certifications and Patents
Company Photos
Packaging
Syochi can customize more air cooling UV LED curing system, water cooling UV LED curing machine, UV LED area curing system, UV LED linear curing equipment, UV LED spot curing device etc.
Don't hesitate to contact our sales for more infos!
|
