| Categories | Thermal Clip On |
|---|---|
| Brand Name: | Nightseer |
| Model Number: | NS335C |
| Place of Origin: | China |
| MOQ: | 1 PCS |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000 PCS PER YEAR |
| Delivery Time: | 7-30 Days |
| Packaging Details: | Negotiable |
| Certification: | ISO,CE,ROSH |
| Size: | 167x65x67 mm |
| Lens: | 35mm |
| Resolution: | Uncooled 384*288px |
| Video/Photo format: | avi/jpg |
| Magnification: | 2x/4x |
| Company Info. |
| Hubei Cono Technology Co,Ltd |
| View Contact Details |
| Product List |

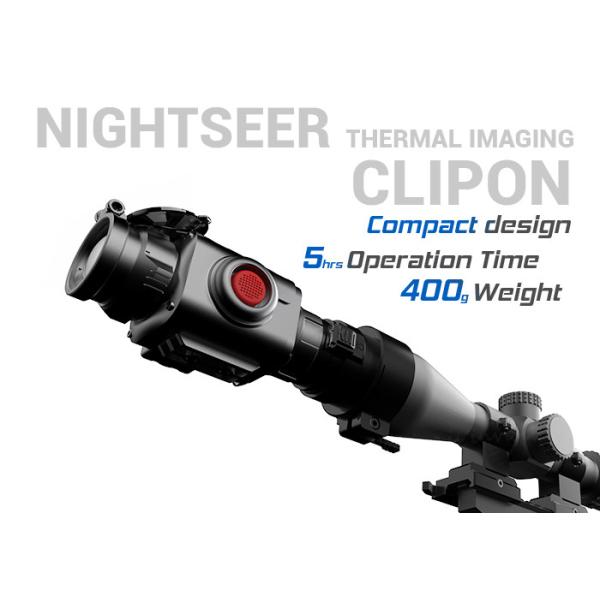

Thermal Clip On Product Description
Find the features that are right for you :
▼ NightSeer Clip-On Systems are advanced Thermal devices designed for viewing, target acquisition and engagement at night
▼ Ergonomic design with five-position thumbstick for one-hand operation
▼ Simple and Quick conversion of daytime scope to Thermal
▼ Quick-Release Mount
▼ Rapid start-up
▼ Limited 2-year warranty
Thermal Imager Clip On Technical Data
| Thermal Imager Scope NightSeer335 Series Technical Data Sheet | |
| NS335-C | |
| Microbolometer | |
| Type | Uncooled |
| Resolution, pixels | 384×288 |
| Frame Rate, Hz | 50 |
| Pixel size, um | 17 |
| NETD | less than 50mk |
| Optical Characteristics | |
| Objective Lens | 35mm, F/1.1 |
| Magnification, X | 1 |
| Zoom | 2x/PIP/4x |
| Eye Relief, mm | 24mm |
| Dioptre Adjustment, D | / |
| FOV | 10.6°×8.0° |
| Close-up range,m | 5 |
| Display | |
| Type | OLED |
| Resolution, pixel | 1024×768 |
| Power Supply | |
| Battery Type | 2XCR123 |
| Power Supply | 3.6~7.2 |
| External Power Supply | 5v USB |
| Operation Time on a battery set(standard version),h | 5 |
| Operation Time on external battery pack(standard version),h(13000mAh) | 44 |
| Video recorder(optional) | |
| Video/Photo format | avi/jpg |
| Built-in memory(optional) | 32G |
| Wifi Channel(optional) | |
| Frequency | 2.4 |
| Reception range,m | 15 |
| Physical Parameters | |
| Degree of Protection | IP67 |
| Operation Temperature | —2°C~+50°C |
| Storage Temperature | —40°C~+70°C |
| Shock and Vibration | 1000g/ms |
| MTBF | More than 800h |
| Weight without batteries,g | 400 |
| Dimension, mm | 150×65×67 |
Thermal Clip On Quality Control
It is our mission to continue to design, build, test and ship the very best optoelectronics devices on the market.
We understand that lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.
|
