| Categories | Floating Fish Feed Plant |
|---|---|
| Brand Name: | Strongwin |
| Model Number: | DSP135 fish food equipment |
| Certification: | CE,ISO,SGS |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 sets per year |
| Delivery Time: | 10-30 working days after deposit |
| Packaging Details: | Wooden Case or In Container |
| Product name: | Wet Type Pet Food / Fish Food Processing Equipment With Boiler |
| Yield: | 1000-1200kg/h |
| Main machine: | crusher,mixer,extruder,dryer,spary,cooler machine |
| Application: | Fish food, pet food |
| hammer mill capacity: | 1000-1500kg/h |
| dryer capacity: | 1000-2000kg/h |

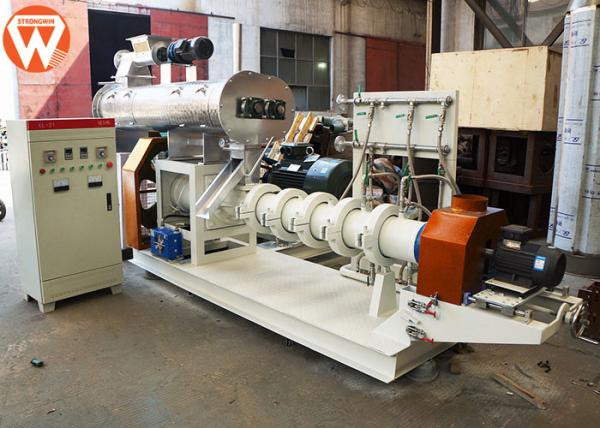

Wet Type Pet Food / Fish Food Processing Equipment With Boiler
Advantages of Wet Type Fish Food Processing Equipment
1. Advanced wet extruder technology, high capacity and low energy consumption.
2. The feed pellet line occupies less floor space and needs low investment in construction work. The modular structure is convenient for assembly and disassembly, facilitating the shipment and installation.
3. PLC controlled, alarm device is available. The operation is simple and convenient.
4. Wide applicable scope: The plant can produce both floating and slow-sinking fish feed, applicable for fish farm holders and fish feed manufacturers.
1. This kind of fish feed extruder machine owns simple structure,
wide application, and low noise.
2. It can improve the quality and floating time of the fish feed
pellets.
3. Salmonellosis and bacterial infections of the raw materials will
be eliminated after being processed by the high temperature and
pressure.
4. We offer different die molds to meet the various needs of the
diameters of feed pellets.
5. The high-quality steel is adopted to guarantee the long service
life of the extruder.
6. The jacketed construction of the extruder is adopted to control
the extruding temperature by adding the materials with hot steam or
cooling water.
7. The fish feed pellets are more economical than the compound
powder feed.
Technical Parameters of Fish Food Processing Equipment
| Main Technical Parameters of Main equipments of DSP135-B Fish Food Processing Equipment | ||||
| Main Machines | Power (kw) | Capacity (kg/h) | Dimensions(mm) | Weight (kg) |
| hammer mill | 2.2 | 1000-1500 | 1600*960*1200 | 680 |
| Bucket elevator | 2.2 | 1000-1500 | 6500*650*500 | 420 |
| Mixer | 2.2 | 500kg/batch, need 10-15 minutes per batch. | 2400*1050*1700 | 580 |
| Bucket elevator | 2.2 | 1000-1500 | 6500*650*500 | 420 |
| Vertical mixer | 2.2 | 1m3 | 1200*820*2800 | 260 |
| DSP135-B | 2.2 | 1000-1200 | 3750*1980*1800 | 2000 |
| dryer | Mesh belt motor power:5.5kw;Feed motor power:0.75kw'Exhaust fan power:1.1kw;Circulating fan power:0.55kw;amount of steam required:0.2-0.3MPa | 1000-2000 | 5850*1600*2400 | 2200 |
| Drum-type Spray Machine | main power2.2kw;Oil pump power:0.55kw;Oil drum heating power:1.5kw | 1000-2000 | 5000*800*1550 | 260 |
| Counter current cooler | Fan power:4.0kw;Shakron discharger power:0.75kw;The discharge method is pneumatic discharge | 1000 | 1800*1500*2400 | 980 |
| Automatic weighing package | 1.1 | ≤300bag/hour;Packing range: 1-50kg/bag | 2400*800*2940 | 576 |
| Steam boiler | 0.4-0.8MPa | 0.5-0.8t/h Steam volume | ||
| Control System | ||||




|   |
