| Categories | Optical Sorting Machine |
|---|---|
| Brand Name: | ZENVO |
| Model Number: | S7 |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 15 working days |
| Packaging Details: | wooden package suitable for ocean shipment |

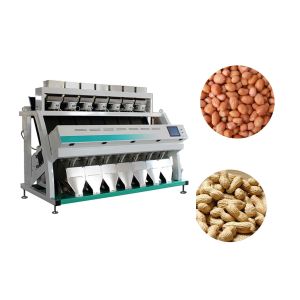

| Product Name: | industrial sorting machine |
| Applications: | peanuts |
| Accuracy: | 99.99% |
| Capacity: | 7 ton/h |
| After Sales service: | Available |
| Warranty: | 1 year |
| Company Info. |
| ANHUI ZENVO TECHNOLOGY CO., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Product Parameters
| Model | Channels(t/h) | Throughput | Accuracy(%) | Optimized Carryover | Power(Kw) | Dimension(mm)(L*W*H) | Weight(Kg) |
|---|---|---|---|---|---|---|---|
| S3 | 192 | 2~5 | 99.99 | ≥12:1 | 2.0 | 1650*1580*1870 | 1030 |
| S4 | 256 | 2.5~6 | 99.99 | ≥12:1 | 2.4 | 1970*1580*1870 | 1180 |
| S5 | 320 | 3.5~8 | 99.99 | ≥12:1 | 2.9 | 2290*1580*1870 | 1330 |
| S6 | 384 | 4.5~10 | 99.99 | ≥12:1 | 3.4 | 2610*1580*1870 | 1480 |
| S7 | 448 | 5.5~12 | 99.99 | ≥12:1 | 3.9 | 2930*1580*1870 | 1630 |
| S8 | 512 | 6~14 | 99.99 | ≥12:1 | 4.4 | 3250*1580*1870 | 1780 |
The above parameters are for reference only and may vary as per types of raw materials and contamination rate.
Specific parameters will be altered according to different material and contamination rate on site of customers.
Advantages:
Tri-chromatic CCD Image Acquisition System 5400 pixel, identify 0.01mm2 defects. | Intelligent Image Processing Algorithm ALTERA FPGA, intelligent & speedy . | Premium Light System LED lighting, higher stability. | Advanced Feeding System Special anodized chute, higher capacity. |
Excellent Rejection Rate Quality image acquisition& processing& nozzle system |
|
