| Brand Name: | Tankii |
| Model Number: | NP /NN |
| Certification: | ISO9001 |
| Place of Origin: | China Mainland |
| MOQ: | 50kg per leg |
| Price: | USD26~30/kg |
| Payment Terms: | T/T, Paypal, Western Union, MoneyGram, |
| Supply Ability: | 1000Ton per year |
| Delivery Time: | About 20 days after getting the payment |
| Packaging Details: | Standard exoprt package |
| Material: | Nichrome Nickel |
| Surface: | Bright |
| Thickness: | 0.2mm~1.0mm |
| Leading time: | 20 days after getting the payment |
| Application: | -200～900 ℃ |
| item: | N Type Thermocouple Strips Nichrome Nickel Strips Used For Thermocouple Connector Tabs 0.2mm to 0.8mm Thickness |
| Company Info. |
| Shanghai Tankii Alloy Material Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

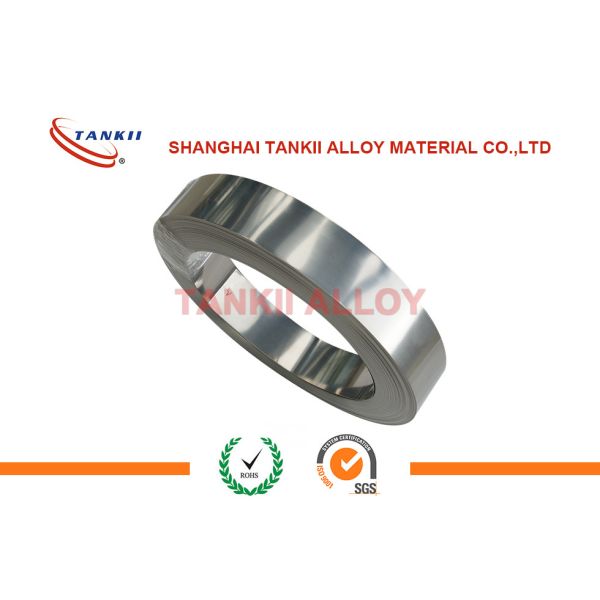

N Type Thermocouple Strips Nichrome Nickel Strips Used For Thermocouple Connector Tabs 0.2mm to 0.8mm Thickness
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple strip have excellent performance and are extensively used in the thermcouple connector's plug.
Thermocouple temperature range and tolerance
| Type | Standard | Operating temperature range (°C) | Tolerance(°C) | |||
| Long term | Short term | Grade | Temperature range | Tolerance | ||
| Type K | GB/T2614 K | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type N | GB/T17615 N | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type E | GB/T4993 E | 750 | 900 | I | -40~800 | ±1.5°C/±0.4%t |
| II | -40~900 | ±2.5°C/±0.75%t | ||||
| Type J | GB/T4994 J | 600 | 750 | I | 0~750 | ±1.5°C/±0.4%t |
| II | ±2.5°C/±0.75%t | |||||
| Type T | GB/T2903 T | 300 | 350 | I | -40~350 | ±0.5°C/±0.4%t |
| II | ±1°C/±0.75%t | |||||
| III | -200~40 | ±1°C/±1.5%t | ||||
