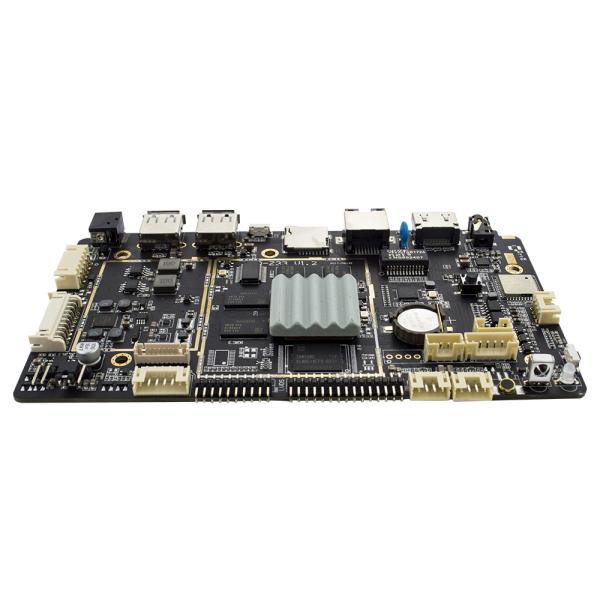

RK3288 Industrial ARM Board Multi Function Linux OS I2C Interface Touch Screen

RK3288 Industrial ARM Board Multi Function Linux OS I2C Interface Touch Screen

RK3288 Industrial ARM Board Multi Function Linux OS I2C Interface Touch Screen
RK3288 Industrial ARM Board Multi Function Linux OS I2C Interface Touch Screen
Categories Industrial ARM Board
Brand Name: ADW
Model Number: AD-Z33
Place of Origin: China
MOQ: 1
Price: USD60~USD70/pc
Payment Terms: T/T, Western Union
Supply Ability: 1,000,000pcs per month
Delivery Time: 1~3days if have stock, 30 days if out of stock
Packaging Details: 1pc/bubble bag, proper qty in a carton
CPU: Rockchip3288 Quad core Cortex A17
GPU: Mali- T764
diaplay interface: LVDS(single, 6 dual, 8 dual)
EDP screen interface: support resolution 1920*1080P
Touch screen: I2C interface
internet: RJ45 interface, support 10M/100M/1000M Ethernet
OS: Linux
USB: USD2.0
EMMC: 8GB,16GB,32GB optional
Contact Now
Company Info.
Shenzhen Sunchip Technology Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

RK3288 Industrial ARM Board Multi Function Linux OS I2C Interface Touch Screen

RK3288 multi functional Linux OS ARM embedded industrial board

Unit 1 Summary of Product

Summary

Smart All-in-one Industrial mainboard, which is based on Rockchip RK3288 Quad core chipset. It supports Android 4.4 and 5.1 or above OS. Reinforced power-management circult, supports attached devices. Ample interfaces, steady performance. It can be used in smart remote control, such as Industrial, medical, Advertise-machine, education video terminal etc.


Feature

  • Support LVDS interface monitors from 7 inch to 84 inch,
  • Multi Interaction modes: Capacitive Touch, IR Touch, IR remote, USB keyboard/mouse, Multi-touch
  • Multi network interfaces: Ethernet, Wireless WIFI, BT
  • Multi interfaces: USB, serial ports, IO interface, I2C, DC output
  • Strong anti-electromagnetic interference and Electromagnetic compatibility

Unit 2 Specification of Product

Product Picture


Basic specification of HW

CPURockchip RK3288 Quad core Cortex-A17, Quad core GPU Mali-T764
Frequency2.2 GHz
RAMDDR3 2G/4G optional
EMMCEMMC 8GB/16G/32G optional(standard 8GB,support NAND FLASH)
Interface of monitorLVDS(single way,6 bit two-way,8 bit two-way). Resolution max 1920x1080,support 7"-84" monitar
EDP 2.0, Resolution max: support 2K screen
Mainboard backlightSupport 3.3V/5V/12V(optional)
Touch Screen

I2C interface(support resistive touch, capacitive touch)

Support USB IR multi touch, sonic multi touch, optical multi touch

NetworkRJ45 interface, ethernet 10/100/1000M
Wi-Fi 802.11b/g/n/ ac, BT4.0
Image rotationSupport 0°, 90°, 180°, 270°, manual control or automatic, gravity
RTCinternal battery for Real time clock
interfacesSupport MIPI camera,max 5MP
Support USB camera, max 2MP
USB HOST x 5,USB OTG x 1
Serial ports x 3, support external devices(NFC module, printer, card reader etc.)
IO ports x 3
TF card slot, support 32GB max
D amplifier: 3W*2 8Ω, support microphone
AudioMP3,WMA,WAV, APE, FLAC, AAC, OGG,M4A,3GPP
VideoSupport H.264,MPEG2,VP6,VP8,MVC, 2160P@24FPS decoding, . on-line video such as YouTube, max support 1080P, HTML5 playback, Flash10.1 playback
PictureSupport JPG,BMP,PNG etc. picture formats, browse, orientation, slides, magnify
Power supplyinput: AC100-240V.50-60HZ, output:DC12V 3A

Basic Software specification

OSLinux
LanguageMulti language
OS managementSupport OTA upgrade,U disk upgrade,SD card upgrade
Original Android OS, rooted,OEM/ODM support
Support output to 3 monitors at same time
Support customized local or remote server management OS
Support third-party Android remote Advertisement release OS
Support multi serials devices, USB devices, IO controlled devices
Support output different videos to two monitors

Structure of PCBA


electric

  • power supply(DC IN 12V)
DefinitionPropertyDescription
１12V_INPower12V power input
２12V_INPower12V power input
３GNDgroundground
４GNDgroundground
55V_STBinputcontrol
6PS-ONinputcontrol

  • Touch Panel connector
definitionpropertydescription
１GNDgroundground
２GNDgroundground
３VCC_TPinput

3.3V

TP power input

４SDAoutputI2C data
５SCLoutputI2C clock
６GNDgroundground
7TP_INTinput

1-B7

External break off

8TP_RSTinput

0-B6

external reset

9GNDground

ground

10GNDgroundground

  • MIC1
definitiondescriptiondescription
１MIC+inputMIC Positive input
２MIC-inputMIC Negative input
  • EARPHONE
definitiondescriptiondescription
１HPRoutputRight channel output
２COMgroundground
3HPLoutputleft channel output

  • SPEAKER
definitiondescriptiondescription
１LPoutputLeft channel output positive
２LNoutputLeft channel output negative
3RPoutputright channel output positive
4RNoutputright channel output negative

  • (KEY)
definitiondescriptiondescription
１VOL+/RECOVERvolume+/ResetDefault high level
２VOL-volume-Default high level
3KEY1inputDefault high level(0-D5)
4KEY2inputDefault high level(0-D6)
5KEY3inputDefault high level(0-D7)
6PLAY_ONinputDefault high level
7VCC33_RTCpowerpower
8GNDgroundground
9GNDgroundground
10GNDgroundground

  • USB_HOST1
definitiondescriptiondescription
１VCC_5Voutput5V output
２HOST_DMoutputdata
3HOST_DPinputdata
4GNDgroundground
  • USB_HOST2
definitiondescriptiondescription
１VCC_5Voutput5V output
２HOST_DMoutputdata
3HOST_DPinputdata
4GNDgroundground

  • USB_HOST3
definitiondescriptiondescription
１VCC_5Voutput5V output
２HOST_DMoutputdata
3HOST_DPinputdata
4GNDgroundground
  • USB_HOST4
definitiondescriptiondescription
１VCC_5Voutput5V output
２HOST_DMoutputdata
3HOST_DPinputdata
4GNDgroundground
  • USB_HOST5
definitiondescriptiondescription
１VCC_5Voutput5V output
２HOST_DMoutputdata
3HOST_DPinputdata
4GNDgroundground

  • USB_OTG1
definitiondescriptiondescription
１VCC_5Voutput5V output
２OTG_DMoutputdata
3OTG_DPinputdata
4NCNCOTG_ID
5GNDgroundground
  • UART
definitiondescriptiondescription
1VCC_IOoutput3.3V output
2GNDgroundground
3UART3_RXinputreceive(5-B7)
4UART3_TXoutputsend(5-B6)
5UART1_RXinputreceive(5-B7)
6UART1_TXoutputsend(5-B6)
7UART1_CTSinputreceive(5-B7)
8UART1_RTSoutputsend(5-B6)
9UART4_RXinputreceive(5-B7)
10UART4_TXoutputsend(5-B6)
11UART4_CTSoutput(5-B4)
12UART4_RTSinputsend(5-B5)
13GO5_C1controlGPIO
14GO6_B3controlGPIO
15G05_C3controlGPIO
16VCC_SYSoutput5V output
17I2C5_SCLI2CI2C
18I2C5_SDAI2CI2C
19GNDgroundground
20GNDgroundground

  • IR Receiver
definitiondescriptiondescription
１IR_OUTinputIR inout(5-C0)
２GNDgroundground
3VCC_5Voutput5v inout
  • LVDS Panel
definitiondescriptiondescription
１POWERoutput3V/5V/12V
２POWER
３POWER
４GNDgroundground
５GND
６GND
７RX0-outputdata
８RX0+outputdata
９RX1-outputdata
１０RX1+outputdata
１１RX2-outputdata
１２RX2+outputdata
１３GNDgroundground
１４GND
１５TCLK3-outputclock
１６TCLK3+outputclock
１７RX03-outputdata
１８RX03+outputdata
１９RXE0-outputdata
２０RXE0+outputdata
２１RXE1-outputdata
２２RXE1+outputdata
２３RXE2-outputdata
２４RXE2+outputdata
２５GNDgroundground
２６GND
２７TCLK2-outputclock
２８TCLK2+outputclock
２９RXE3-outputdata
３０RXE3+outputdata

  • LCD JP JACK
definitiondescriptiondescription
１12Voutput12V
２LCD-VDD-INinputLCD
13.3Voutput3.3V
2LCD-VDD-INinputLCD
35Voutput5V

  • LCD BL JACK
definitiondescriptiondescription
１12Voutput12V
２12Voutput12V
3LCD-ENoutputbacklight control(0-B1)
4LCD-ADJoutputbacklight adjust(3-D6)
5GNDgroundground
6GNDgroundground

  • eDP Panel
definitiondescriptiondescription
１POWERoutput3V/5V/12V
２POWER
３GNDgroundground
４GND
5EDP_TX0Noutputdata
6EDP_TX0Poutputdata
7EDP_TX1Noutputdata
8EDP_TX1Poutputdata
９EDP_TX2Noutputdata
10EDP_TX2Poutputdata
11EDP_TX3Noutputdata
12EDP_TX3Poutputdata
13GNDgroundground
14GNDgroundground
15EDP_AUXNoutputdata
16EDP_AUXPoutputdata
17GNDgroundground
18GNDgroundground
19EDP_HPDinputdata
20GNDgroundground


Appendix

  • Product pictures
  • front


  • back


  • side
