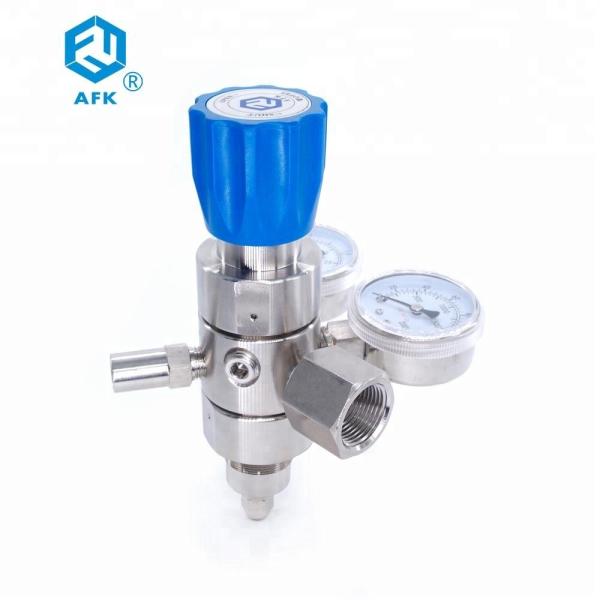

| Categories | Stainless Steel Pressure Regulator |
|---|---|
| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | AFK |
| Model Number: | R31 |
| Supply Ability: | 2000 Piece/Pieces per Week |
| Packaging Details: | Each piece with a PP bag first, then put in a small box, outside is in carton. |
| MOQ: | 1 - 9 Pieces |
| Price: | Negotiable |
| Certification: | CE |
| Material: | 316L SS |
| Maximum inlet pressure: | 3000, 500PSI |
| output pressure: | 0-25,0-50,0-100, 0-250PSI |
| working temperature: | -23~+74 deg C |
| Applied gas: | pure gases, standard gases, corrosive gases and so on |
| bonnet material: | ss316L |
| seat: | PCTFE |
| Spring: | ss316L |
| O-ring: | viton |
| strainer: | 316L (um) |
| Port: | Shenzhen |
| Company Info. |
| Shenzhen Wofly Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| Maximum Inlet Pressure | 500,3000psig | |||||
| Outlet Pressure Ranges | 0~25, 0~50, 0~50,0~250,0~500psig | |||||
| Safety test pressure | 1.5 times maximum inlet pressure | |||||
| Operating Temperature | -40°F to +165°F / -40°c to 74°c | |||||
| Leakage Rate Against Atmosphere | 2*10-8atm cc/sec he | |||||
| Cv value | 0.06 | |||||
Body | 316L,Brass | ||
Bonnet | 316L. Brass | ||
Diaphragm | 316L | ||
Strainer | 316L(10mm) | ||
Seat | PCTFE,PTEE,Vespel | ||
Spring | 316L | ||
Plunger valve core | 316L | ||
Typical Application
l Laboratory
l Gas laser
l Gas bus-bar
l Petrochemical industry
l Testing equipment
Material
l Body: 316L, Brass
l Bonnet: 316L, Brass
l Diaphragm: 316L
l Strainer: 316L(10μm)
l Seat: PCTFE, PTFE, Vespel

| Item | Body Material | Body Hole | Inlet pressure | Outlet pressure | Gauge | Inlet connection | Outlet connection | Optional |
| R31 | L:ss316L | M | D:3000PSI | G:0-125psi | G:Mpa | 00:1/4NPT F | 00:1/4"NPT F | P:panel mount |
| B:brass | Q | F:500PSI | I:0-75psi | P:psi/bar | 01:1/4"NPT M | 01:1/4"NPT M | R:attached safety relief valve | |
| K:0-25psi | W:no gauge | 23:CGA330 | 10:1/8O.D. | N:attached needle valve | ||||
| L:0-15psi | 24:CGA350 | 11:1/4O.D. | D:attached diaphragm valve | |||||
| Q:30"Hg Vac-30psig | 27:CGA580 | 12:3/8O.D. | ||||||
| S:30"hg Vac-60psig | 28:CGA660 | 15:6mmO.D. | ||||||
| T:30"hg Vac-100psi | 30:CGA590 | 16:8mmO.D. | ||||||
| U:30"Hg Vac-200psi | 52:G5/8"-RH(F) | 74:M8*1-RH(M) | ||||||
| 63:W21.8-14H(F) | ||||||||
| 64:W21.8-14LH(F) | ||||||||
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our
company mainly produces Pressure Regulator.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20
days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning
qualified.If there is any fault for our products within the free
warranty period, we will repair it and change the fault assembly
for free.
|
