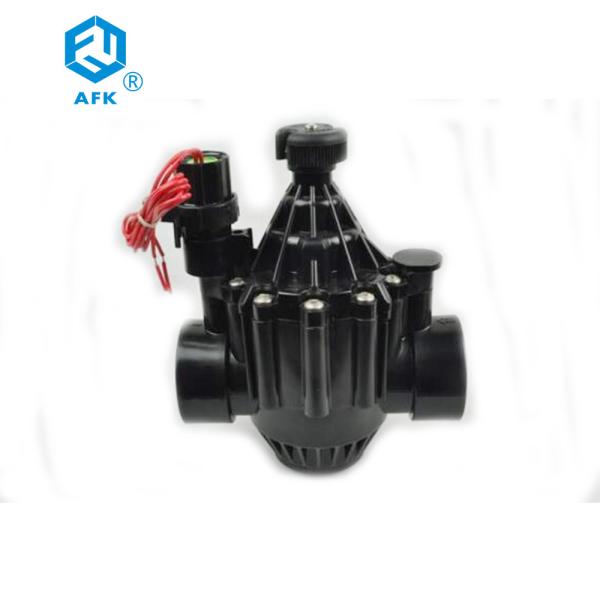

DN40 Irrigation Solenoid Valve 40mm 1.5 Inch Below 43°C BSP Female Threaded

AC220V DN40 40mm 1.5inch garden agriculture irrigation solenoid valves

Specification

No.	ITEM	TECHNICAL PARAMETERS
1	Material	nylon plastic body, NBR seal
2	Fluid	water
3	Fluid temperature	≤43°C
4	Environment temperature	≤52°C
5	Service voltage	6-20VDC(can be order latching type coil), 24VAC, 24VDC, 110VAC, 220VAC
6	Pulse width	20-500mSec (only for latching type)
7	Coil resistance	6 Ω
8	Capacitance	4700uF
9	Coil inductance	12mH
10	Connection	G(BSP) female thread is regular, special order for NPT(3/4" and 1")
11	Size	075D: 3/4", 20mm (BSP or NPT female) 100D:1", 25mm (BSP or NPT female ) 100P:1", 25mm (BSP female) 150P:1-1/2"(1.5"), 40mm (BSP female) 200P:2", 50mm (BSP female) 300P:3", 80mm (BSP female, male, flange) 400P:4", 100mm (BSP female, male, flange)
12	Working pressure	3/4" and 1": 1-10bar 1.5"and 2": 1-10.4bar 3"and 4": 0.7-14bar
13	Flow rate	3/4": 5 m³/h 1": 9 m³/h 1.5"-2": 0.45-34.05 m³/h 3"-4": 1.1-70 m³/h
14	Operation mode	valve element lock position,valve open, release position, valve close.

Irrigation System

Hi, my dear friend, if any interests, please send me an inquiry with the following information included as many as possible. You also can contact me directly. Your enquiry will be answered within 24 hours.

We will be very much appreciated if you can provide the parameters as below:

1. size

2. connection: G male thread, G female thread, NPT male thread, NPT female thread, flanged.

3. voltage

4. latching type coil required? 6-20vdc voltage range can be equiped with latching type coil.

5. quantity
