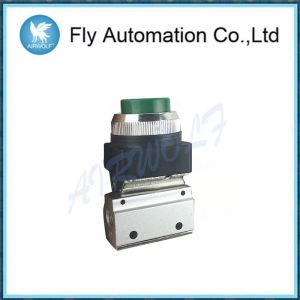

3/2 Way MSV86321PPL MSV86321TB 1/8" Palm Button Extended Twist
Selector Mechanical Valve
Features
1. To be installed in moving devices like air cylinder, slide, etc.
2. Various operating styles.
3. Panel bore size Φ30(Option Φ25)
OPTIONS
With exhaust port
NPT Thread (MSV8632-01N)
Optional button colours Green (G), Black (B) or Yellow(Y)
Panel mount diameter 25mm
Without exhaust MSV8622 or Stackable 2 station (LB or TB) or
stackable MSV8642, Stackable with exhaust MSV8662
CONSTRUCTIONBody : Aluminium alloy, Panel dimension 30mm, internal
parts : Stainless steel, Seals and gaskets : NBR
Specification
| Model | MSV8632-01 | MSV8632-01TB |
| Port size | 1/8" | |
| Body material | Aluminum alloy | |
| Panel dimension | 30mm(Option: 25mm) | |
| Fluid | Compressed air | |
| Sectional area | 1.8mm² | |
| Operating pressure range | 0~9 kgf/cm² | |
| Max. operating pressure | 10 kgf/cm² | |
| Ambient temperature | -10~60℃ | |
| Standard operator color | Black: TB, LB; Red: PB, PP, PPL, EB | |
