24 Ton 8x4 Water Foam Firefighter Truck , Heavy Rescue Fire Truck D10 Series Engine

Categories Special Purpose Truck
Brand Name: Sinotruk
Model Number: JDF5410GXFPM240
Certification: CCC
Place of Origin: China
MOQ: 1 unit
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 UNITS/MONTH
Delivery Time: 21 working days
Packaging Details: Nude
Water monitor rated reach: water : 65m , foam: 50m
Drive Type:: 8X4
Overall dimensions(mm): 11900×2500×3635(mm)
GVW / Kerb Weight: 41000 kg / 17300 kg
Storage:: Water ,foam
Water Monitor rated flow/pressure: 60L/S , 1.0MPa
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

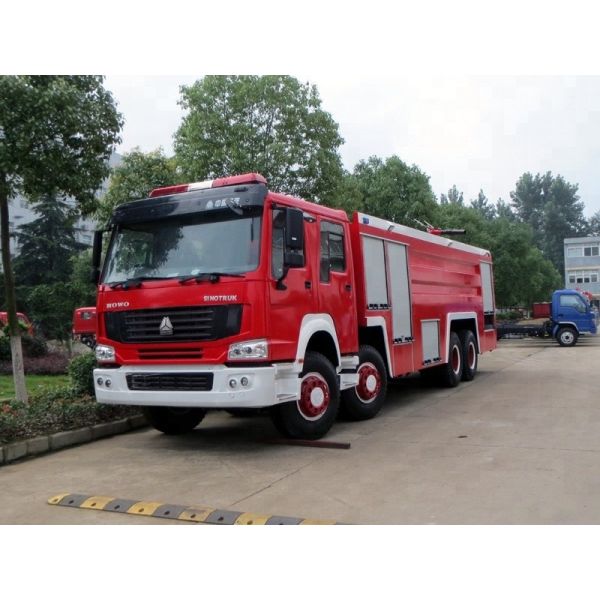

24 Ton 8x4 Water Foam Firefighter Truck , Heavy Rescue Fire Truck D10 Series Engine

SINOTRUK HOWO 24Ton 8x4 water foam fire fighting truck with D10 series engine


Description:


1. Fire pumps: middle pressure pump, low pressure pump, high pressure pump, ordinary pressure pump,medium and low pressure fire pump, high and low pressure fire pump and etc.
2. All kinds of fire fighting equipment.
Please advise us in advance if you have any special requests for the fire fighting truck, we can equip various kinds optional equipments for you.


Packing:


Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.The main machine nude, attached parts and tools put into standard export box.Within 20 days deliver the goods to main Port.Ro-Ro ship or bulk ship or according to customer requiring.We have professional forwarding partners.


Advantages:


EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.All standard accessories: Typical modern fire apparatus carries equipment for a wide range of firefighting and rescue tasks. These include shovel, pike poles, axes and cutting equipment.We can make the fire fighting truck according to customer's requests with the optional equipments .


Specification:


General

Vehicle BrandJDF
Chassis BrandHOWO
Overall Dimension11900×2500×3635(mm)
GVW / Kerb Weight41000 kg / 17300 kg
CabCab Capacity2+4 persons allowed
Air ConditionerAir conditioner is optional
EngineEngine BrandD10
Fuel TypeDiesel
Power249kw
Displacement9726ml
Emission StandardEuro II
ChassisDrive Type8x4, left hand or right hand drive
Transmission12-speed front, 1 reverse
Wheelbase/No. of axle1800+4600+1350,2150+4300+1350
Tyre Specification12.00R20,385/65R22.5/12.00-20
Tyre Number12 tyres and 1 spare tyre
Max Speed85 km/h
PaintMetallic Paint

Superstructure

Water Capacity20500 Litres (About 5400 Gallons)
Foam Capacity3500 Litres (About 900 Gallons)
Tank MaterialCarbon steel
Water tank dimension6135×2380×1450mm
Foam tank dimension910×2380×1450mm
Suction Head7m
Water Monitor rated flow/pressure60L/S , 1.0MPa
Water monitor rated reachwater : 65m , foam: 50m
HoseHigh quality, wire strengthened hose, with cooper wire, anti-static
