General Purpose SMD Chip Inductors Ind Wire Wound 25.2MHz 20Q - Factor Ferrite 240mA

B82498B1821J000 SMD Chip Inductors Ind General Purpose Chip Wirewound 820nH 5% 25.2MHz 20Q-Factor Ferrite 240mA

Size 0805 (EIA) and/or 2012 (IEC) Rated inductance 2.7 nH to 4700 nH Rated current 90 mA to 1000 mA
Construction
■ Cubic coil with ceramic core

■ Winding partially plastic-sealed

■ Winding ends welded to terminals

Features

■ High Q factor

■ High resonance frequency

■ Close inductance tolerance

■ Suitable for lead-free reflow soldering

■ RoHS-compatible

Applications

Resonant circuits, impedance matching for

■ Antenna amplifiers

■ Multimedia

■ Car access systems

■ TPMS (Tire Pressure Monitoring System)

■ Wireless communication systems

■ GPS (Global Positioning System)
Terminals
■ Base material Al2O3 ceramic or ferrite

■ Thick-film coating of Ag/Pd/Pt

Marking
■ No marking on component

■ Minimum data on reel: Manufacturer, ordering code, L value, quantity, date of packing

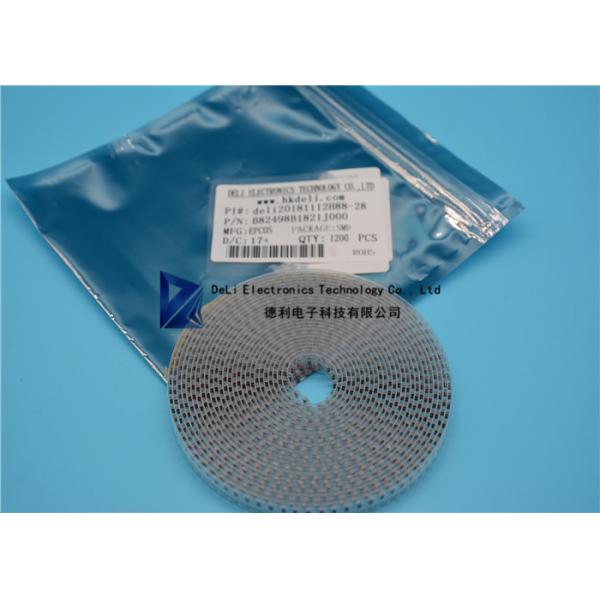

Delivery mode and packing unit

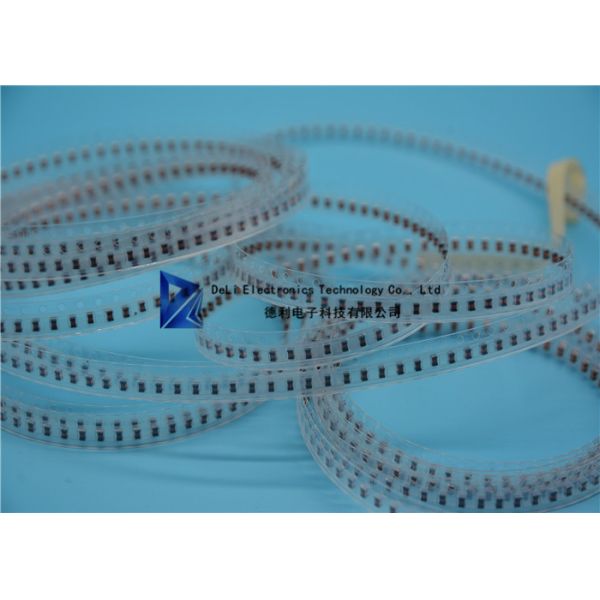

■ 8-mm blister tape, wound on 180-mm ∅ reel

■ Packing unit: 3000 pcs./reel

Lead Finish Silver/Palladium/Platinum
Max Processing Temp 260
MSL Level 1
Package/Case 0805
Product Dimensions 2.2 x 1.4 x 1.45 mm
Product Length 2.2 mm
Technology Wirewound
Test Frequency 25.2 MHz
Tolerance 5 %
