| Brand Name: | ABB |
| Model Number: | AI820 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 280 USD |
| Payment Terms: | T/T / Paypal |
| Supply Ability: | 50 |
| Delivery Time: | In Stock |
| Packaging Details: | New Original Box |
| Product Name: | Input Module |
| Model No.: | AI820 |
| Article number: | 3BSE008544R1 |
| Signal specification: | -20..+20 mA, 0(4)..20 mA, -10..+10 V, 0(2)..10 V |
| Number of channels: | 4 |
| Signal type: | Bipolar differential |
| Type: | Analog Input |
| Mechanics: | S800 |
| Company Info. |
| Shenzhen Wisdomlong Technology CO.,LTD |
| Verified Supplier |
| View Contact Details |
| Product List |

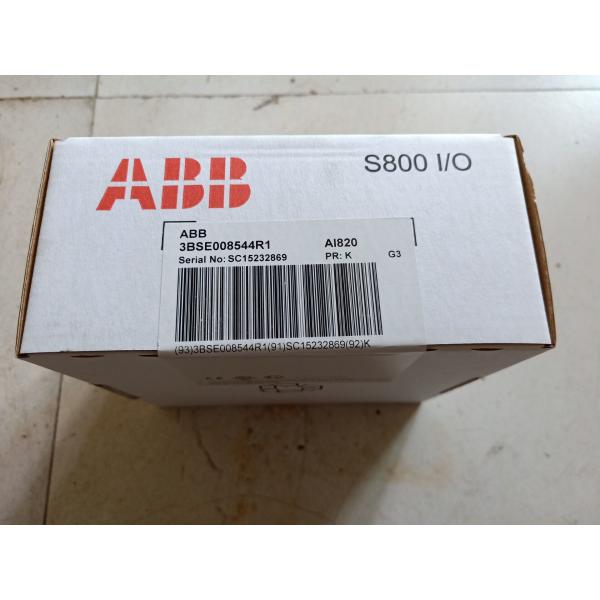

ABB S800 Digital I/O Module 4 channels AI820 3BSE008544R1 Analog
Input Module
I/O Modules
| AI801 | AI810 | AI815 | AI820 | AI825 |
| AI830A | AI835A | AI843 | AI845 | AI880A |
| AI890 | AI893 | AI895 | AO801 | AO810V2 |
| AO815 | AO820 | AO845A | AO890 | AO895 |
| DI801 | DI802 | DI803 | DI810 | DI811 |
| DI814 | DI818 | DI820 | DI821 | DI825 |
| DI828 | DI830 | DI831 | DI840 | DI880 |
| DI890 | DO801 | DO802 | DO810 | DO814 |
| DO815 | DO818 | DO820 | DO821 | DO828 |
| DO840 | DO880 | DO890 | DP820 | DP840 |
General Information
| Type | Analog Input |
| Signal specification | -20..+20 mA, 0(4)..20 mA, -10..+10 V, 0(2)..10 V |
| Article number | 3BSE008544R1 |
| Number of channels | 4 |
| Signal type | Bipolar differential |
| HART | No |
| SOE | No |
| Redundancy | No |
| High integrity | No |
| Intrinsic safety | No |
| Mechanics | S800 |
Detailed Data:
| Resolution | 14 bit plus sign |
| Input impedance | 200 kΩ ± 25% (voltage mode, common mode) 800 kΩ ± 25% (voltage mode, normal mode) 250 Ω (current input) |
| Isolation | Groupwise isolated from ground (RIV=50 V) |
| Under/over range | ± 15% |
| Error | Max. 0.1% |
| Temperature drift | Voltage: Max. 70 ppm/°C Current: Max. 50 ppm/°C |
| Input filter (rise time 0-90%) | 40 ms |
| Current limiting | Transmitter power can be current limited by the MTU |
| Maximum field cable length | 600 meters (656 yards) |
| Dielectric test voltage | 500 V a.c. |
| Power dissipation | 1.7 W |
| Current consumption +5 V Modulebus | 80 mA |
| Current consumption +24 V Modulebus | 0 |
| Current consumption +24 V external | 70 mA |
Description of AI820:
The AI820 Analog Input Module has 4 differential, bipolar
current/voltage inputs. Each channel can be either a voltage or
current input. The current inputs can withstand an accidental
maximum normal mode 30 V d.c. connection. To protect the current
input circuit against dangerous input levels, that is, by
accidentally connecting a 24 V source, the resistor rating of the
250W current sense resistors is about 5 Watts. This is intended
only to temporarily protect one channel at a time.
The module distributes the external transmitter supply to each
channel. This adds a simple connection (with extended MTUs) to
distribute the supply to external 2 wire transmitters. There is no
current limiting on the transmitter power terminals.
All 4 channels are isolated from the ModuleBus in one group. Power
to the input stages is converted from the 24 V on the ModuleBus.
Diagnostics
| Front LED’s | F(ault), R(un), W(arning) |
| Supervision | Internal Power Supply |
| Status indication of supervision | Module Error, Module Warning, Channel error |
Features and benefits
Compability
| Use with MTU | TU810, TU812, TU814, TU830, TU833 |
| Keying code | BB |
Dimensions
| Height | 119 mm (4.7”) |
| Width | 45 mm (1.77”) |
| Depth | 102 mm (4.01”), 111 mm (4.37”) including connector |
| Weight | 0.2 kg (0.44 lbs.) |
Terminal:
| TU814V1 | TU810V1 | TU833 | TU838 | TU812V1 | TU850 | TU830V1 |
