| Categories | Industrial Pointing Device |
|---|---|
| Brand Name: | CNKHTECH |
| Model Number: | KH-M088-TP |
| Certification: | CE/ROHS/FCC |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiation |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 5000pcs/month |
| Delivery Time: | 1-2 weeks |
| Packaging Details: | 6pcs/EPE/inner box, 30boxes/ctn |
| Material: | Aluminum panel |
| Mounting Method: | Rear panel mounting solution |
| Dimensions: | 88 x 67 mm (Front panel) |
| Interface: | PS2 |
| Operating Temperature: | -20º C to + 60º C |
| Product Name: | Industrial Touchpad |
| Company Info. |
| SZ Kehang Technology Development Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

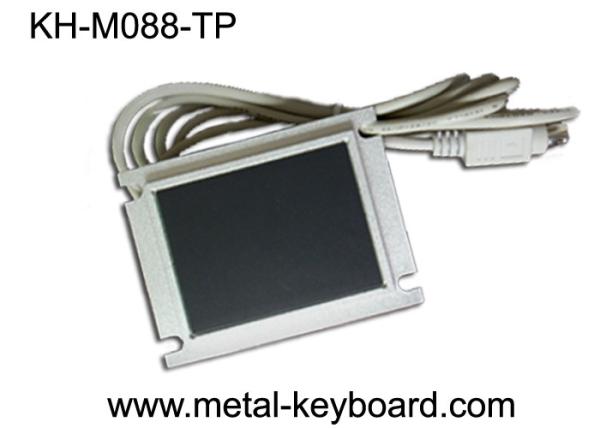

Weather proof metal Industrial Touchpad Mouse with PS2 Interface
Product Features:
• High precision pressure sensing technology of touchpad,
• PS2 or USB are available, No driver needed, plug and play.
• Rear aluminum panel w/hole mounting solution
• Customized layout is available
MAIN APPLICATION:
• This Industrial Touchpad is mainly used for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas.
TECHNICAL SPECIFICATION
| Mechanical | Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer |
| Validated Touchpad | (W x H):62 x 46 mm; | |
| Touchpad lifespan | > 10 Mio times | |
| Interface | PS2 or USB are available | |
| Electrical | Power supply | 5V DC+ 10%, |
| Work current | 4.0 mA (normal) | |
| X/Y position sensing resolution: | 1000 points/inch (40 points/mm) | |
| X/Y position reporting: | Relative | |
| Tracking speed: | Maximum 1,016 m/sec | |
| Protection level: | IP65 (front panel) | |
| Static Release: | 15 KV (front panel) | |
| EMC Standard: | EN55022(B) | |
| Environmental | Operating temperature: | -10°C to +55°C |
| Storage temperature: | - 20°C to + 65°C | |
| Operating RH: | 10%-95% | |
| Atmospheric pressure: | 60-106Kpa | |
| Reliability | MTBF | >50000H |
| MTTR | < 30min | |
| Touchpad Lifespan | >10 million actuations | |
| OS | OS is under DOS/Windows95/98/NT/ME/2000/XP/2003/Vista, Linux, Win7,Unix, Mac OS9 / OSX | |
|
