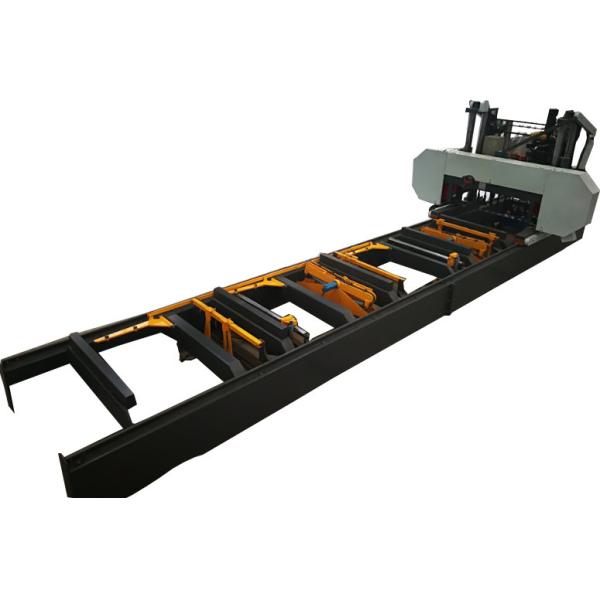

Woodworking Hydraulic Bandsaw Machine Log Cutting Band Sawmill Wood Saw Machine

Categories	Hydraulic Bandsaw Machine
Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJH1100E,MJH1500E
MOQ:	1 SET
Price:	US $21,000 - 39,000 / Set
Packaging Details:	container loading
Delivery Time:	within 20 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	100sets/year
Name:	Large Size Wood Cutting Horizontal Band Sawmill
Type:	Band Saw
Style:	Horizontal
Saw wheel diameter:	1070mm
Voltage:	380v,3ph,50HZ or as customer needs
Power:	37kw, 53kw
Saw blade width:	125mm, 150mm
Weight:	8500kg
sawing thickness setting:	touching screen
Warranty:	12 months
After-sales Service Provided:	Engineers available to service machine overseas

Contact Now

Add to Cart

Company Info.

Weifang Jiuyi Information technology co., LTD

Verified Supplier

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Combined with Hydraulic automation technology, the heavy duty hydraulic horizontal band sawmill realizes all digital intelligent control .
Chinese and English operating systems, automatic rotation, sawing and cutting of large diameter wood, simple operation of equipment, precise cutting thickness, improves wood usage rate .

Technical Data:

Model	MJH1200E	MJH1500E
Max Sawing Wood Diameter	1200mm	1500mm
Saw Wheel Diameter	1000mm	1070mm
Max Sawing Wood Thickness	400mm	400mm
Standard Sawing Wood Length	4500mm	4500mm
Electric Motor Power	37kw	45kw
Up/Down Electric Motor	2.2kw	2.2kw
Forward/Backward Electric Motor	3kw	3kw
Band Saw Blade Width	125-150mm	125-150mm
Band Saw Blade Tension	Electric
Machine Length	7000mm	7000mm
Weight	7000kg	8500kg

Panel Cutting Multi Blade RIp Saw

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:

Technical data :

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type
