| Categories | Large Bandsaw Mill |
|---|---|
| Place of Origin: | Shandong Province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | MJ1200 MJ1500 MJ2000 MJ2500 |
| MOQ: | 1 SET |
| Price: | US $11,000 - 29,000 / Set |
| Packaging Details: | container loading |
| Delivery Time: | within 15 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 500sets/year |
| Product name: | Heavy duty horizontal band saw |
| Condition: | New |
| Saw wheel diameter: | 1070mm |
| Max. sawing log diameter: | 2500mm |
| Saw walking forward/back: | Electrical |
| Sawn size setting: | PLC touching screen |
| Bandsaw blade width: | 125mm, 150mm |
| Sawing wood max. length: | 6meters or as customer needs |
| After-sales service provided: | Online support,commissioning and training |
| Application: | Horizontal Wood Band Saw Sawmill,sawmill timber lumber factory,Furniture factory |
| Company Info. |
| Weifang Jiuyi Information technology co., LTD |
| Verified Supplier |
| View Contact Details |
| Product List |
Big bandsaw wheels heavy duty horizontal band sawmill, Large Electric Band Saw Machine
Heavy Duty Large Size Horizontal Band Sawmill
Technical specifications:
| Model | MJ1200 | MJ1500 | MJ2000 | MJ2500 |
| Max. sawing width | 1200mm | 1500mm | 2000mm | 2500mm |
| Height from blade to track | 1100mm | 1200mm | 1700mm | 2200mm |
| Saw wheel diameter | 1070mm | 1070mm | 1070mm | 1070mm |
| Max.sawn thickness | 350mm | 350mm | 400mm | 400mm |
| Sawing wood length max. | 6meters | 6meters | 6meters | 6meters |
| Saw blade length & width | 7900 &125mm | 8600&125mm | 9700&125mm | 10500&125,150mm |
| Main motor power | 30kw | 37kw | 45kw | 55kw |
| Weight | 3800kgs | 4500kg | 5000kg | 5500kg |

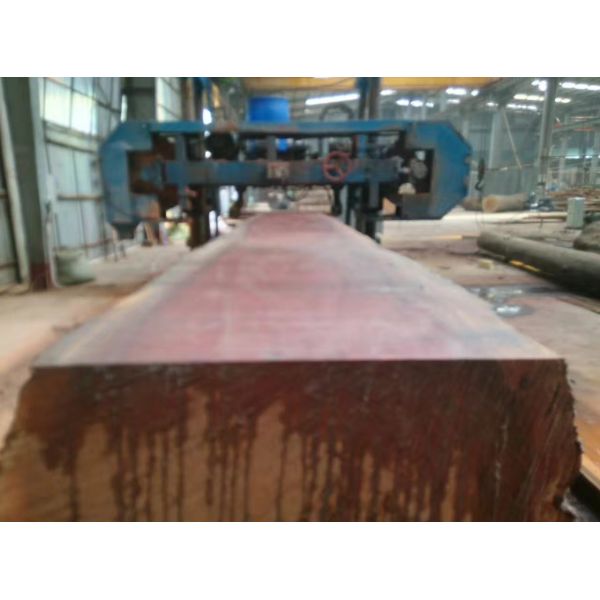

Detailed Image
Diesel Engine Powered Large Size Horizontal Band Sawmill
Accessories for blades maintaining (optional)
| Product Name | Main technical data |
| MR150 Hard alloy band saw blade sharpener | Grinding teeth pitch range: 6-40mm Feeding speed: 0-120 teeth/min (adjustable) Width of blade: 30-150mm Length of blade: 2.8m-11meters Power: 0.55kw |
| Alloy grinding wheel | |
| UN150 Blade Welding Machine | Welding saw blade width: 30mm-150mm Voltage 380v/50hz Welding blade thickness:0.7-1.25mm Weight(kg) 250 |
| MR417 Blade Roll-machinery | Roll diameter(mm) 70 Processing Speed(r/min) 52 Equipped with power(kw) 0.75 Width of the max processing(mm) 150 |
| Blade recondition frame with back rule, roll platform, tooth shaper and cross hammer | Trim saw blade work platforms |
|
