Categories | Automatic Printing Machine |
---|---|
Brand Name: | Promega |
Model Number: | Pro-FPM |
Certification: | CE |
Place of Origin: | China |
MOQ: | one set |
Price: | USD 50,000 ~ 80,000 |
Payment Terms: | L/C, T/T |
Supply Ability: | 5 sets per month |
Delivery Time: | 30 working days |
Packaging Details: | In wood case |
Condition: | New |
Automatic grade: | Fully automatic |
Printing colour: | 5 colour |
Printing speed: | 50m/min |
After sale service: | oversea installation and training |
Company Info. |
Shanghai ProMega Trading Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

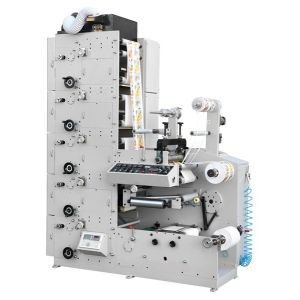

Five Colours Flexographic Automatic Printing Machine with IR dryer
This machine features:
1, Adopt the creamic anilox cylinder to transfer the ink.
2, Unwinding and rewinding are controlled by magnetic powder
brake/clutch.
3, Each printing unit adopts 360° plate adjustment.
4, Each printing unit equips with IR dryer.
5, This machine with one die-cutting station,which makes printing and
die-cutting can be finished in one precess.
6, The ink rollers will be separated from the printing roll-ers, and
keep running when the machine stops.
7, The manin machine inverter is imported.
8, The machine can finish material-feeding,printing, var-nishing,
drying,laminating,rewinding and die-cutting in a lump. It is an
ideal machine for printing note and top-grade adhesive label.
Main technical parameters:
Model | Pro-FPM |
Printing speed: | 50m/min |
Printing colour: | 5colours |
Max.web width: | 320mm |
Max.printing width: | 310mm |
Max.unwinding diameter: | 600mm |
Max.rewinding diameter: | 600mm |
Printing length: | 175-355mm |
Precision of chromatography: | ±0.1mm |
Dimensions: | 2(L)x1.1(W)x2.6(H)(m) |
Machine weight: | about2200kg |
The following optional devices:
1, UV dryer |
![]() |
