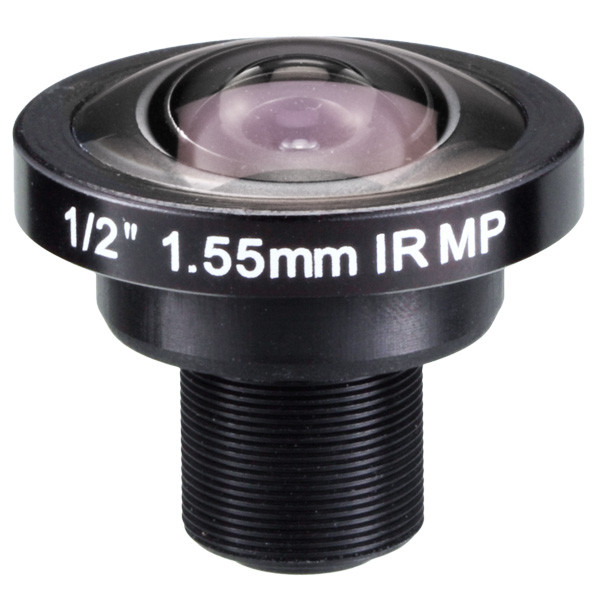

1/2" 1.55mm 5Megapixel S-mount M12 Mount 185degree IR Fisheye Lens, 5MP Panoramic camera lens

● High resolution
● Various applications meet your requirements

● Compact design with cost-effective performance
● Custom design

● Super wide-angle with FOV up to 185° for panoramic surveillance
● Sharp image quality for multi-mega pixels cameras
● Suitable for various image frame
● IR cut option

1/2" 1.55mm 5Megapixel M12*0.5 mount S-mount 185degrees super wide angle IR Fisheye Lens

MODEL 120155MP
IMAGE FORMAT 1/2" CCD/CMOS

MAX. IMAGE CIRCLE Φ4.6mm
FOCAL LENGTH(mm) 1.55
F.O.V. 185°(D)*185°(H)*185°(V)
RESOLUTION 5MP
APERTURE 2.0
MOUNT(mm) M12x0.5
IRIS Fixed
M.O.D.(m) 0.15
B.F.L.(mm) 6.43

T.T.L.(mm) 32.85
DIMENSION(mm) Φ28x26.6
LENS COMPOMEMT 8-6

Tips:
- ***MP: without IR-Cut filter
- ***MPF: with IR-Cut filter
- 650nm/850nm/940nm IR filter optional

- For more fisheye lenses, please feel free to contact us at sales01@megapixellenses.com; cctv.lens@ccom-tech.com

We are professional supplier of camera lenses and keeping providing innovative optical solutions and products to the market. We specialize in Megapixel Fisheye Lenses, Megapixel S-Mount(M12x0.5) Board Lenses, Megapixel M10/M9/M8/M7/M6/M5 Mount Lenses, CCTV Lenses/Medical Lenses, Pinhole Lenses, C Mount Lenses/ITS Lenses for Highway monitoring application, Vari-focal M12x0.5 Mount Lenses, Vari-Focal CS Mount Lenses, Megapixel Vari-Focal C/CS Mount Lenses, Fixed/Mono-Focal CS Mount Lenses, Megapixel Fixed/Mono-Focal CS Mount Lenses, etc.

We Keep providing new lens models for high-definition cameras in many applications, including Day& Night security, IP surveillance, Panoramic security, Video conferencing, Motion capture, Recognition, Sports, Machine Vision / FA, Automotive, Medical, etc.

We are committed to the R&D, design, manufacture and marketing of an extensive line of optical products. Any lens you need we could source, design and manufacture for you.

If you are interested in our optical products, please feel free to contact us. We are looking forward to our future cooperation and long-term partnership.
